ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range

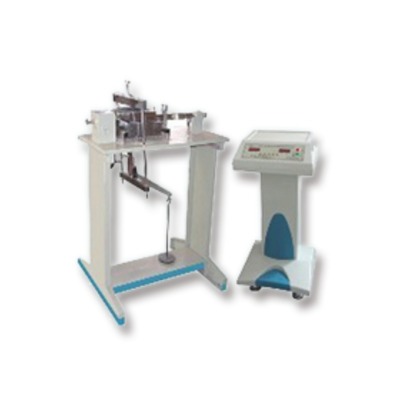

Large Image : ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Geotextile Interface Friction Test Machine with 0-10KN Force Measurement Range

Description

Force Measurement Range:	0 - 10KN	Horizontal Shear Rate:	0.02 - 3mm/min
Horizontal Shear Displacement:	0 - 30mm	Rated Voltage:	AC220V 50Hz
Vertical Loading Pressure:	100kpa, 200kpa, 300kpa, 400kpa	Protection Class:	IP56
Transmission Type:	Ball Screws	Load Sensor Type:	Wheel-rim Type
Transmission Mechanism:	Circular Arc Tooth Synchronous Belts	Speed Ratio:	1:100,000
Frame Structure:	Floor-standing	Motor Type:	High-precision Stepper
Shear Implementation:	High-precision Stepper Motors	Coaxiality Process:	Special Processes
Fixture Design:	Firm Clamping, No Sliding
Highlight:	ISO 12957 Geosynthetic Direct Shear Apparatus , ASTM D5321 Geotextile Interface Friction Test Machine , 0-10KN Force Measurement Range Textile Testing Machine

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus Sand Geotextile Interface Friction Test Machine

This precision testing machine determines the friction characteristics of sand/geotextile interfaces through direct shear tests, applicable to all geotextiles and related products. It features high-precision stepping motors for accurate measurements.

Scope of Application

Conducts direct shear tests on standard sand and geotextile contact surfaces to determine interface friction characteristics. Suitable for all geotextile products and related materials.

Compliant Standards

ISO12957.1, GB/T17635.1, ASTM D5321, JTGE50T1129, SL/T235-199

Product Features

Floor-standing frame structure with high strength, minimal deformation, and stylish appearance
Imported high-precision ball screws for efficient, smooth operation
High-precision wheel-rim type load sensors for accurate measurements and excellent stability
Circular arc tooth synchronous belt transmission with zero gap in both directions
Speed ratio exceeding 1:100,000
Specially designed fixture for firm clamping and convenient operation
Special processes ensure coaxiality and eliminate specimen irregularities' impact on sensors

Technical Specifications

Horizontal shear implementation	High-precision stepper motors
Force measurement range	0 - 10KN
Vertical loading pressure	100kpa, 200kpa, 300kpa, 400kpa
Horizontal shear rate	0.02 - 3mm/min
Horizontal shear displacement	0 - 30mm
Rated voltage	AC220V 50Hz

ISO 12957 ASTM D5321 Geosynthetic Direct Shear Apparatus
