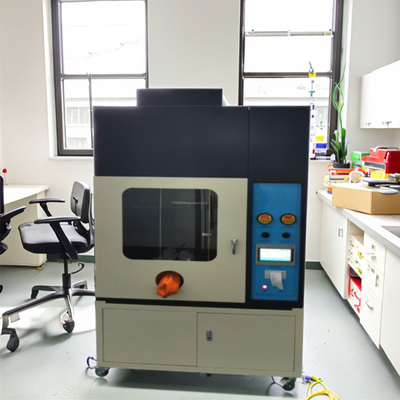

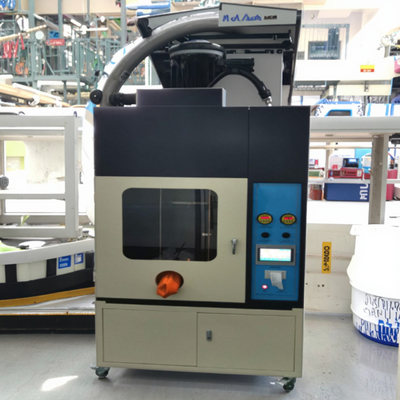

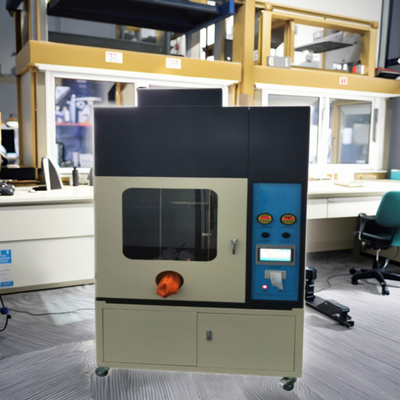

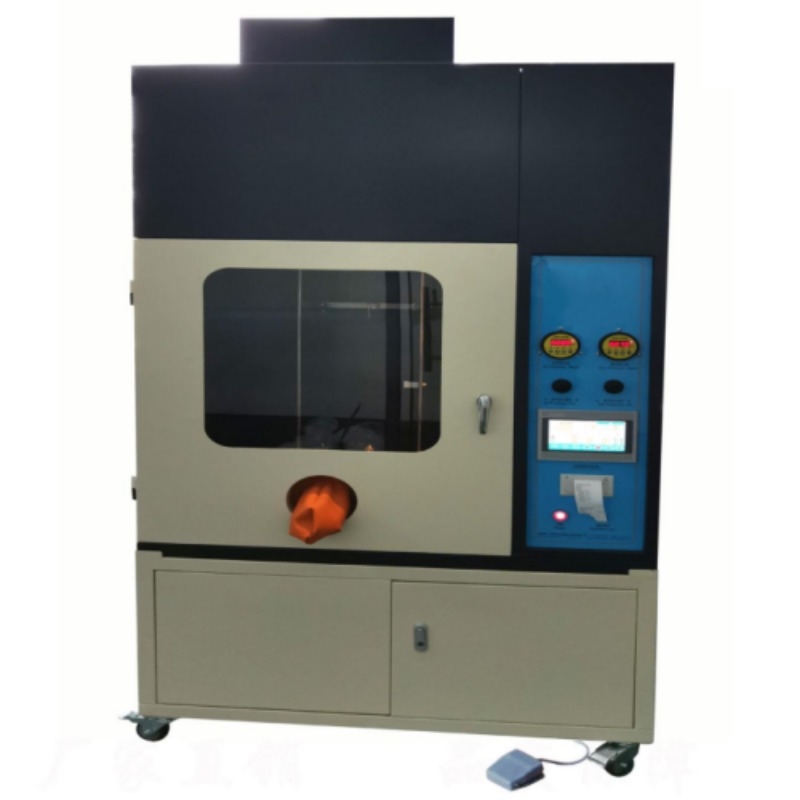

IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test

IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test
IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test

Large Image :  IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

IEC 60332 Vertical Flame Tester 220V for Electrical Cable Combustion Test

Description
Voltage: 220V Power Supply: 220V ± 10%, 50Hz, 2A
Protection Class: IP56 Load Configuration: 2.5N (2 Pieces), 5N (1 Piece), 10N (2 Pieces)
Dimensions: 1360mm × 2000mm × 800mm Control Method: Touch Screen + PLC
Chamber Dimensions: 300mm × 1200mm × 450mm Combustion Blowtorch Power: 1KW
Propane Gas Flow: 0.1 - 1 L/min Air Flow: 0.1 - 1 M³/h
Sample Length: 600 ± 25 Mm Sample Outer Diameter: 1 - 150 Mm
Flame Inner Cone Height: 50 - 60 Mm Flame Outer Height: 170 - 190 Mm
Temperature Rise Time: 45 ± 5 Seconds
Highlight:

IEC 60332 vertical flame tester

,

electrical cable combustion tester

,

220V cable flame test machine

IEC 60332 Single Wire Vertical Combustion Tester
Single Electrical Cable Vertical Flame Test Equipment
This vertical flame test equipment is designed for evaluating the combustion characteristics of single insulated cables or cable assemblies according to international standards.
Test Standard Compliance
  • GB18380.11/12/13_2022 "Cable Burning Test under Flame Conditions - Part 1: Vertical Burning Test Method for Single Insulated Cable or Cable Assembly"
  • Equivalent to IEC60332.1-2004 standard
Technical Specifications
Component Specification
Vertical Combustion Chamber Dimensions: 300mm × 1200mm × 450mm
Combustion Blowtorch
  • Standard power: 1KW
  • Combustion gas: High-purity propane gas
  • Movement control: Manual or automatic operation
Gas & Air Parameters
  • Propane gas: Flow range 0.1 - 1 L/min; Pressure adjustment range 0 - 2 kgf/cm²
  • Air: Flow range 0.1 - 1 m³/h; Pressure adjustment range 0 - 2 kgf/cm²
  • Measurement: High-precision digital mass flow meters
Test Sample (Electrical Cable)
  • Length: 600 ± 25 mm
  • Outer diameter: 1 - 150 mm
  • Conductor requirement: Diameter > 0.8 mm or cross-sectional area > 0.5 mm²
  • Combustion state: 45° angle flame application
Test Environment
  • Non-ventilated environment
  • Temperature: 23 ± 10℃
  • Laboratory sealing meets standard requirements
Flame Control & Calibration
  • Burning time adjustable: 0.01 - 999.9 seconds
  • Flame size: Inner cone 50-60mm; outer flame 170-190mm
  • Temperature rise: 100℃ to 700℃ in 45 ± 5 seconds
  • Calibration components: K-type thermocouple and standard copper block
Additional Features
  • Power Supply: 220V ± 10%, 50Hz, 2A
  • Control Method: Touch screen + PLC
  • Test Results: Printable output
  • Ventilation Kitchen Dimensions: 1360mm × 2000mm × 800mm
  • Load Configuration: 2.5N (2 pieces), 5N (1 piece), 10N (2 pieces)
Standard Compliance
  • Complies with latest GB/T18380.11 standard
  • References GB/T5169.14 standard
  • Testing chamber volume ≥ 1 cubic meter
  • Sealing meets specific regulatory requirements
