ASTM D5887 Compliant Geotextile Bentonite Pad Permeability Tester with 0.05 ml Accuracy and 220 V Voltage

Large Image : ASTM D5887 Compliant Geotextile Bentonite Pad Permeability Tester with 0.05 ml Accuracy and 220 V Voltage

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ASTM D5887 Compliant Geotextile Bentonite Pad Permeability Tester with 0.05 ml Accuracy and 220 V Voltage

Description

Voltage:	220 V	Protection Class:	Ip56
Scale Reading Accuracy:	0.05 Ml	End Pressure Range:	0 - 550 KPa (79 Psi)
Sample Size:	100 Mm	Max Sample Thickness:	50 Mm
Titrant Cylinder Capacity:	25/400 Ml	Compression Pressure Range:	0 To 600 KPa (87 Psi)
Pressure Indication Accuracy:	1 KPa (0.1 Psi)	Measurement Display Method:	Scale Reading
Countertop Material:	Stainless Steel	Pressure Regulation:	Imported High-precision Valves
Vacuum Device:	Integrated	Negative Pressure Degassing:	Yes
Test Chamber Mobility:	Movable
Highlight:	ASTM D5887 Compliant Geotextile Bentonite Pad Permeability Tester , 0.05 ml Accuracy Geotextile Bentonite Pad Permeability Tester , 220 V Voltage Geosynthetic Clay Liner Permeameter

ASTM D5887 Geotextile Bentonite Pad Permeability Tester

Geosynthetic Clay Liner Bentonite Geotextile Composite Liner Permeameter

The geotextile bentonite pad permeability tester measures the permeability coefficient of bentonite waterproof blankets under specified pressure and time conditions. This instrument determines seepage flow through samples at controlled hydraulic pressure differences, calculating precise permeability coefficients for quality assessment.

Key Features

1+2 workstation configuration (main unit plus two auxiliary machines)
Stainless steel countertop for corrosion resistance and durability
Air pressure loading system eliminates electrical requirements
Imported high-precision pressure regulating valves for stable performance
Optimized loading circuit with simple valve operation
Enhanced measurement accuracy (0.05 ml leakage volume precision)
Integrated vacuum device for simplified sample preparation
Negative pressure degassing system ensures water purity
Movable test chamber for flexible operation
Three-position valves for intuitive instrument control
Pre-configured for future automation upgrades

Technical Specifications

Parameter	Specification
Sample size	Ø 100 mm (customizable); maximum thickness 50 mm
Compression pressure range	0 to 600 kPa (87 psi), continuously adjustable
End pressure range	0 - 550 kPa (79 psi), continuously adjustable
Pressure indication	Pressure holding with upstream/downstream switching display (1 kPa/0.1 psi accuracy)
Penetration measurement	Scale reading with 0.05 ml precision
Titrant cylinder capacity	25/400 ml maximum volume

Compliance Standards

SL/T 235-30-2012, JG/T 193-Appendix A-2006, GB/T 35470-Appendix B-2017, JC/T 2054-Appendix A -2020, ASTM D5887-1999

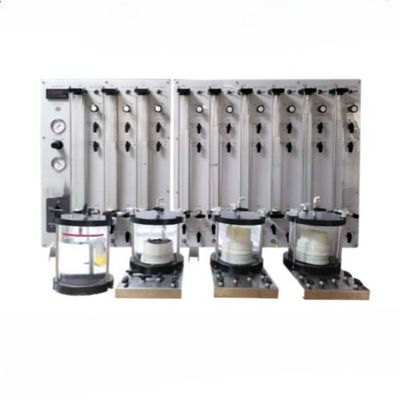

Geotextile Bentonite Pad Permeability Tester

Tester in operation
