ISO 13431-1999 GB/T 17637-1998 Compliant Geotextile Tensile Creep Testing Machine with 180KN Maximum Load for Geotextiles Tensile Creep Rupture Properties

Large Image : ISO 13431-1999 GB/T 17637-1998 Compliant Geotextile Tensile Creep Testing Machine with 180KN Maximum Load for Geotextiles Tensile Creep Rupture Properties

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 13431-1999 GB/T 17637-1998 Compliant Geotextile Tensile Creep Testing Machine with 180KN Maximum Load for Geotextiles Tensile Creep Rupture Properties

Description

Maximum Load:	180KN	Load Accuracy:	≤ ±1%
Fixture Width:	50mm Or 200mm	Effective Creep Space:	900mm
Effective Test Width:	350mm	Displacement Accuracy:	0.03mm
Time Measurement Error:	≤ ±1%	Overall Dimensions:	2300×550×1850mm (L×W×H)
Voltage:	220 V	Protection Class:	IP56
Sampling Rate:	High	A/D Converter:	High-precision
Measurement Range:	Wide	Test Curves:	Real-time Display
Data Storage:	Yes
Highlight:	ISO 13431-1999 Compliant Geotextile Tensile Creep Testing Machine , GB/T 17637-1998 Compliant Geotextiles Tensile Creep Rupture Properties Tester , 180KN Maximum Load Geotextile Tester

ISO 13431 Geotextile Tensile Creep Testing Machine

Product Description

The ISO 13431 Geotextile Tensile Creep Testing Machine is designed for determining the tensile creep and tensile creep rupture properties of geotextiles and related products.

Scope of Application

This specialized testing equipment is primarily used for evaluating the tensile creep and tensile creep rupture characteristics of geotextiles and related materials.

Compliance Standards

Complies with ISO 13431-1999 and GB/T 17637-1998 standards.

Main Features

Real-time display of test curves with data storage, analysis, and report curve printing capabilities
High sampling rate for enhanced test data accuracy
High-precision A/D converter for continuous measurement without step changes
Automatic fracture detection with shutdown and return-to-waiting functions
Multiple protection methods for safe and reliable test operations
Flexible interfaces and control methods for drawing various characteristic curves

Technical Specifications

Parameter	Specification
Maximum load	180KN
Load accuracy	≤ ±1%
Fixture width options	50mm or 200mm
Effective creep space	900mm
Effective test width	350mm
Displacement measurement accuracy	0.03mm
Time measurement error	≤ ±1%
Overall dimensions	2300×550×1850mm (L×W×H)

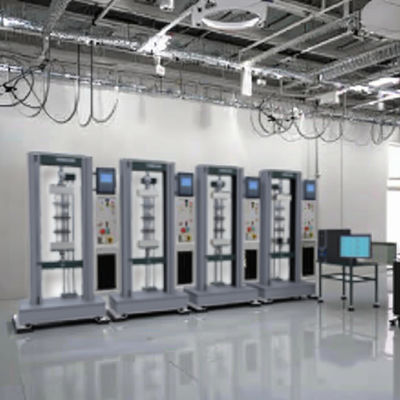

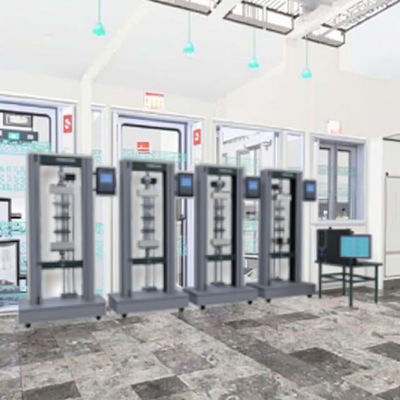

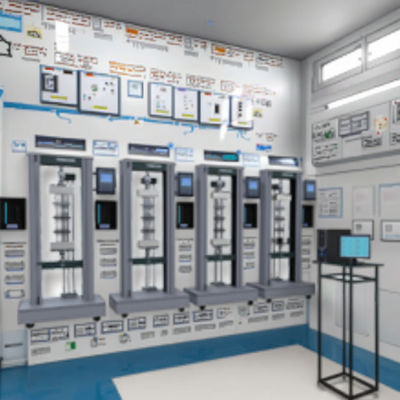

Product Images
