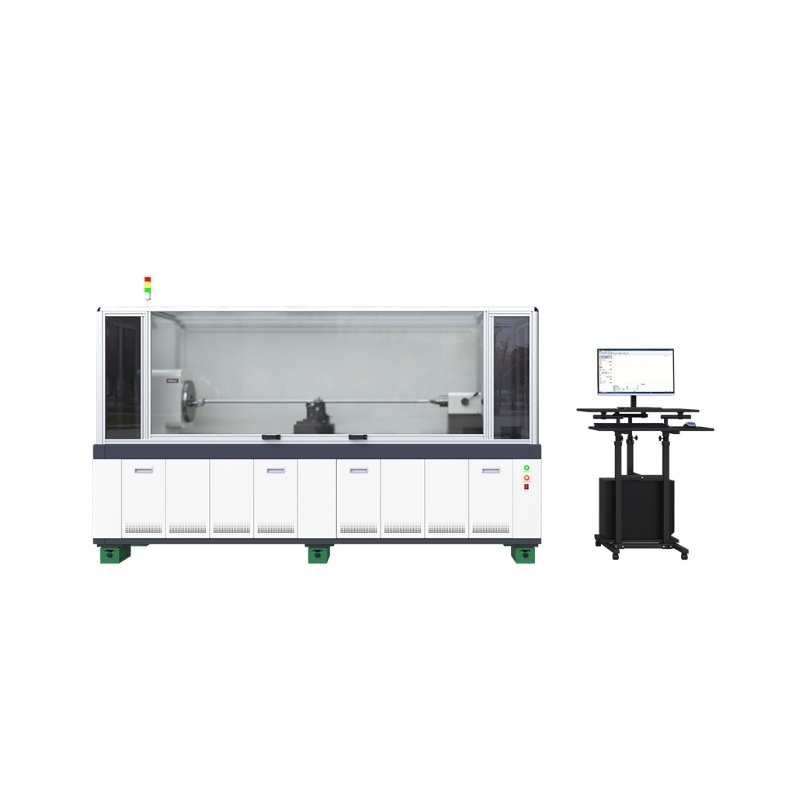

Lead Screw Pitch Measuring Machine Pitch Detectioon Mechanical Equipment

Large Image : Lead Screw Pitch Measuring Machine Pitch Detectioon Mechanical Equipment

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-A100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Lead Screw Pitch Measuring Machine Pitch Detectioon Mechanical Equipment

Description

Minimum Lead Range Of Lead Screw:	≥0.5mm	Angle Interval:	0.0125°
Rotation Speed:	0.5r/min To 20r/min	Radial Runout:	≤2μm
Warranty:	1year	Measurement Error:	±(15 + L/300) μm

Lead Screw Pitch Measuring Machine Pitch Detectioon Mechanical Equipment

Description

It is equipped with a high-stability marble base, which has strong resistance to temperature changes and excellent measurement stability.

The air-floating guide rail system has high motion accuracy and low friction.

By using nano-scale grating displacement sensors, it is possible to accurately measure the minute displacement changes of the drill and obtain the pitch parameters of the measured object.

The multi-dimensional anti-flow protective cover of the machine effectively isolates environmental dust, air flow, temperature and other variable disturbances.

Technical Parameters

Measuring Range	Maximum measuring length of lead screw	≤1500mm	≤3000mm
	Center distance between rotary axis tip and tailstock tip	≤1800mm	≤3500mm
	Measuring outer diameter range of lead screw	Φ3mm - Φ35mm	Φ100mm
	Minimum lead range of lead screw	≥0.5mm	≥0.5mm
	Clamping range of lead screw nut	Φ5mm - Φ50mm	Φ200mm
Precision Parameters of Each Axis of the Equipment	Number of lines of circular encoder	28800 points	28800 points
	Angle interval	0.0125°	0.0125°
	Rotation speed	0.5r/min to 20r/min	0.5r/min to 20r/min
	Radial runout	≤2μm	≤2μm
	Straightness of high - precision linear guide rail	2μm/500mm	2μm/500mm
	Resolution of floating optical grating displacement sensor	0.01μm	0.01μm
	Measurement error	±(15 + L/300) μm	±(1.5+L/300)μm

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
