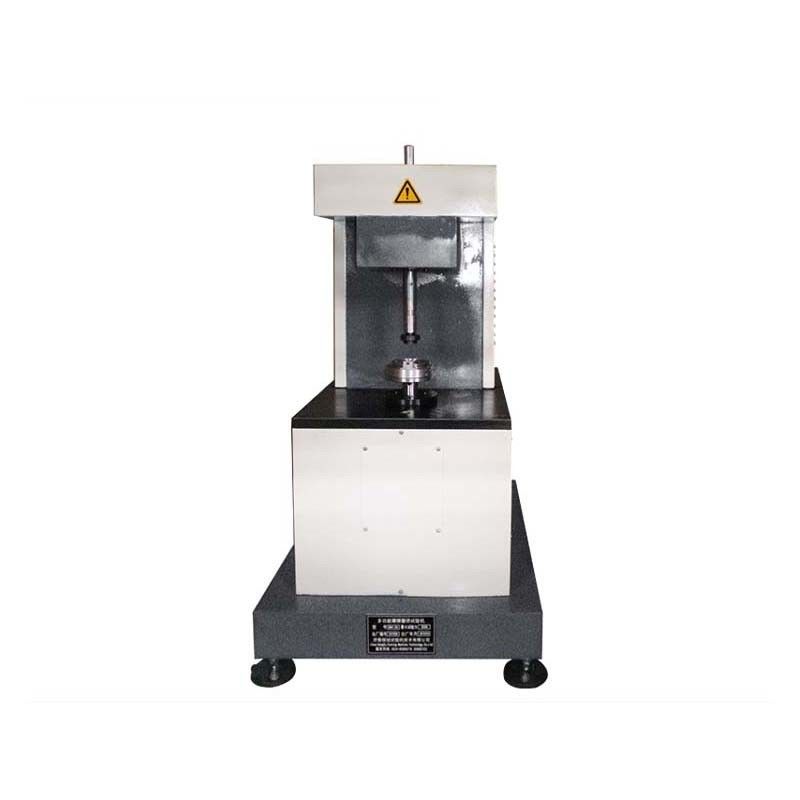

Multi Functional Small Friction Testing Machine 1KW For Lubricants Metals Plastics

Test load

5 - 300,500 N (error ± 2 N)

Loading method

The lever weights can be loaded automatically or manually.

Supporting method

Single pivot (pivot self-adaptive)

Main motor power

1KW

Speed (variable frequency stepless speed regulation)

1 - 2000 revolutions per minute

Friction torque measurement range

0 - 2500 N•mm (measurement error ±3%)

Test medium

Dry friction, lubricating oil, mixed abrasive, etc.

Friction pair

Large and small pulley discs; large and small ball discs; large and small end faces

Supporting method of the secondary disk

Adjustable without gap floating type

Preheating range of the temperature control system

Room temperature to 200℃

Temperature measurement element

Precise armored thermocouple

Temperature measurement accuracy

±2℃

Control method

It can achieve combined control of speed, time, friction force, etc. (for automatic loading type, it adopts closed-loop control with three adjustable segments for speed)

Host protection

The main unit has warning for each test parameter

Data processing

Using real-time monitoring software, it can be set with one click, real-time data collection and processing to draw relevant curves. Curves can be captured at any time, and single point can be enlarged arbitrarily

Specialized data processing computer

LCD display, dual-core processor, 2G memory, 500G hard disk

Power supply

220V 10A 50HZ

Overall dimensions (length, width, height)

Approximately 770x520x850 (mm) exquisite mainframe
