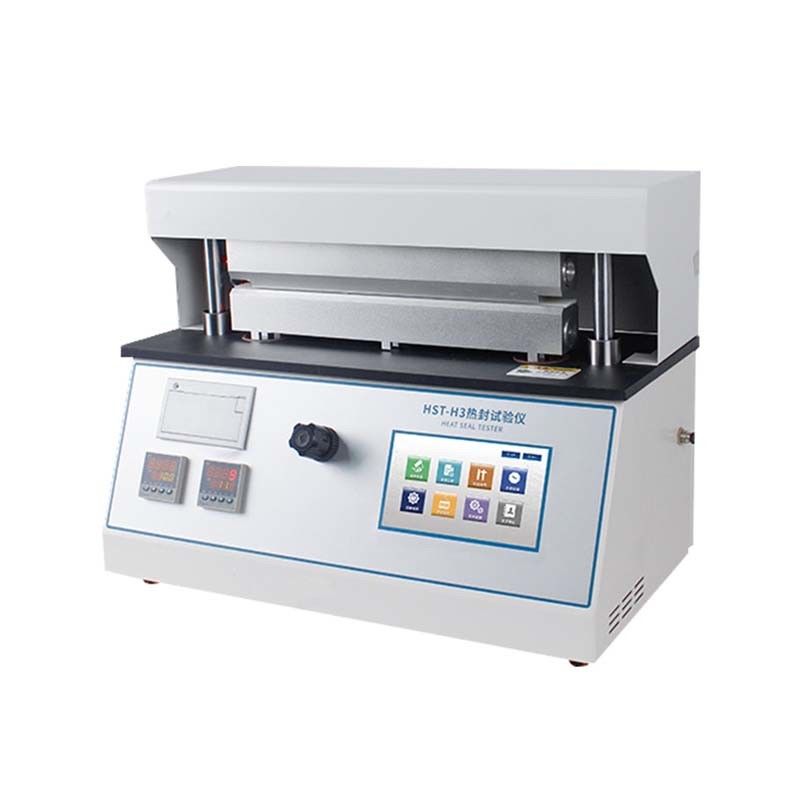

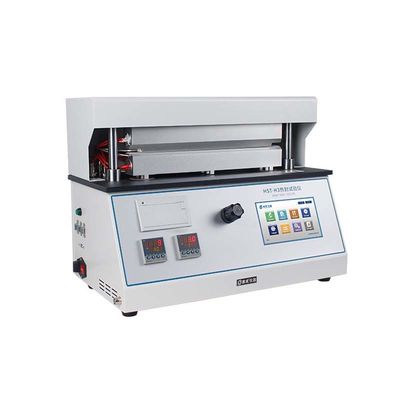

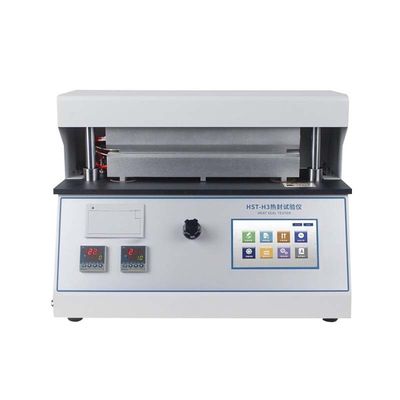

Plastic Film Testing Equipment ASTM F2029 Heat Sealing Tester 50Hz

ASTM F2029 Heat Sealing Tester for Packaging Plastic Film

1. Use
Heat Seal Tester is based on the heat sealing method and is specifically designed for determining the heat sealing temperature, residence time and pressure of various composite films, guiding industrial production. The instrument adopts a specially designed heat-sealed jaws, which fully comply with multiple national and international standards.

2. Features
1. 7-inch touch interface is more convenient to operate.
2. Self-innovated "constant temperature control" system improves the accuracy.
3. The synchronous circuit of bottom gas cylinder ensures the balance of pressure.
4. Aluminum-sealing jaws provide even and uniform temperature for sealing surfaces.
5. The upper and lower jaws controlling the temperature independently and the super-long thermal cover can meet different needs.
6. The design of anti-scald and leakage protection is more secure to test.
7. Dual switch modes: manual and pedal.
8. Micro-printer.

3. Principle
The heat sealing testing machine is composed of upper and lower heat sealing pliers. Before the test, pre-set the heat sealing temperature, pressure and residence time. Place the sample between the upper and lower jaws and press the start button. The entire sealing process can be completed automatically.
Standards
This test instrument conforms to many national and international standards:
QB/T 2358, ASTM F2029, YBB 00122003.

4. Applications

5. Technical Specifications

6. Configurations
Standard
Instrument, Pedal Switch, Micro-Printer.
Optional
Professional Software, Communication Cable.
Note
1. The air connection of the instrument is Φ6 mm PU Tube.
2. The air source is provided by user.
