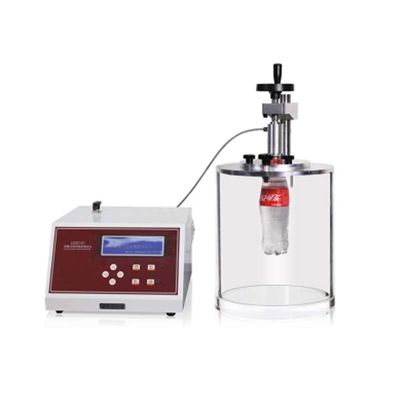

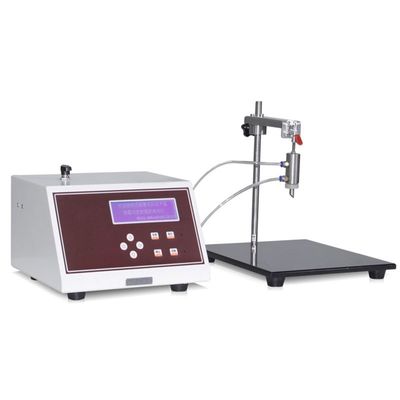

ISO 11607 Inner Pressure Tester for Plastic Bottle Positive Pressure
1. Product Character
1. LCD display, PVC panel, humanized design
2. A key operation in the testing process can improve the testing efficiency
3. The experimental data are displayed on the LCD screen, and the results are automatically counted and printed
4. Test attachment support, flexible, compatible and diverse test methods
5. Standard USB interface configuration, computer software support, and realization of multiple unit displays
6. Information sharing between test data and the Internet can be achieved.
2. Test Principle
Test principle: By injecting gas at a certain pressure into the plastic beverage bottle sample and holding it under pressure for a certain period of time, the pressure tester automatically determines whether the sample is well sealed or the maximum pressure value at the time of explosion.
Test standard
AQB/T1868, ISO 11607-2, GB/T 10440, GB 18454, GB 19741, GB 17447, ASTM F1140, ASTM F2054, ISO11607, GB/T 17876, GB/T 10004, BB/T 0025, QB/T1871, YBB 00252005, YBB 00162002
3. Application area
Used for all kinds of carbonated beverage bottles, plastic bottles to maintain internal pressure and blasting test.
4. Technical Specification
| Item |
Specification |
| Test range |
0-1.6MPA |
| Test accuracy |
±1% |
| Air pressure |
Big than 1.2MPA(The air source is provided by the user) |
| Air connection |
Φ8 mm polyurethane tube |
| Out size |
300 mm (L) × 310 mm (W) × 180 mm (H) |
| Power |
AC 220V 50Hz |
| Net weight |
23 kg |
