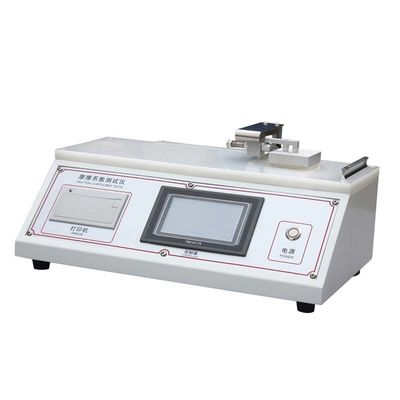

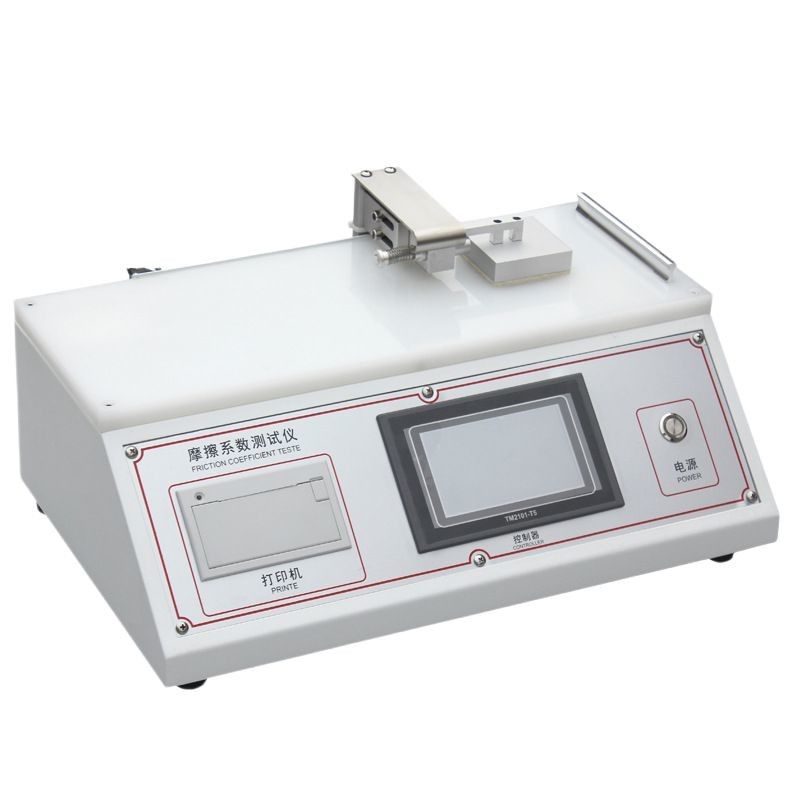

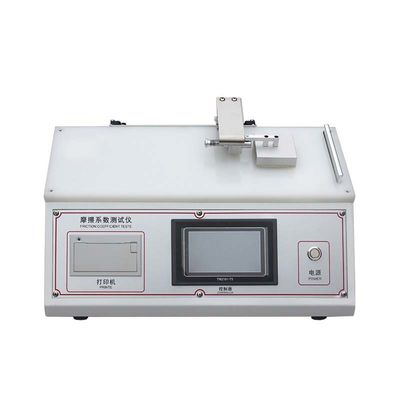

Static And Dynamic Coefficient Of Friction Meter COF Tester ISO 8295

ISO 8295 Static and Dynamic Coefficient Of Friction COF Tester

1. Product Introduction
The coefficient of friction tester is designed in accordance with the GB 10006 national standard and is specialized in measuring the static and dynamic friction coefficients of materials such as plastic films and sheets, rubber, paper, cardboard, woven bags, fabrics, communication cables and cable metal composite tapes, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials, and tires when they slide. By measuring the smoothness of the materials, the production quality process indicators of the materials can be controlled and adjusted to meet the requirements of product use. In addition, it can also be used to measure the smoothness of daily chemical products such as cosmetics and eye drops.

2. Product characteristics
1. The equipment is controlled by a microcomputer, and the test process is automated. It is equipped with a menu-based operation interface, a PVC control panel and a liquid crystal screen, which is convenient for users to conduct test operations and view data.
2. All system components are manufactured by well-known manufacturers, featuring stable and reliable performance. The high-precision force sensor achieves the highest test accuracy: 0.001N
3. No mechanical knob, full digital system, digital correction and zeroing.
4. Specially designed drive system, smooth operation, more accurate test results.
5. This system can simultaneously measure the static friction coefficient and dynamic friction coefficient of the sample.
6. Equipped with a micro printer, it can automatically print the test reports of single or group samples.
7. The instrument test bench and test slider adopt demagnetization and residual magnetism detection, effectively reducing the system test error.
8. Grouped data, with embedded data statistical analysis functions.
9. The interface design of this instrument is simple, the operation is easy and the use is convenient.

3. Technical parameter

According to the standard: GB1006 standard design and manufacturing, and in line with ISO 8295, ASTM D1894, TAPPI T816
