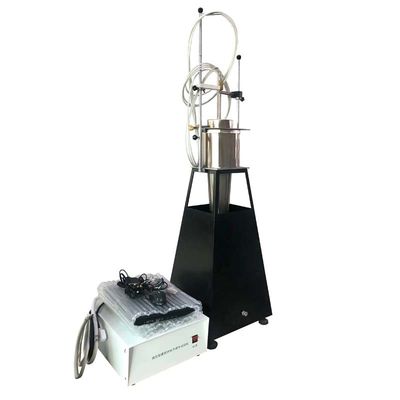

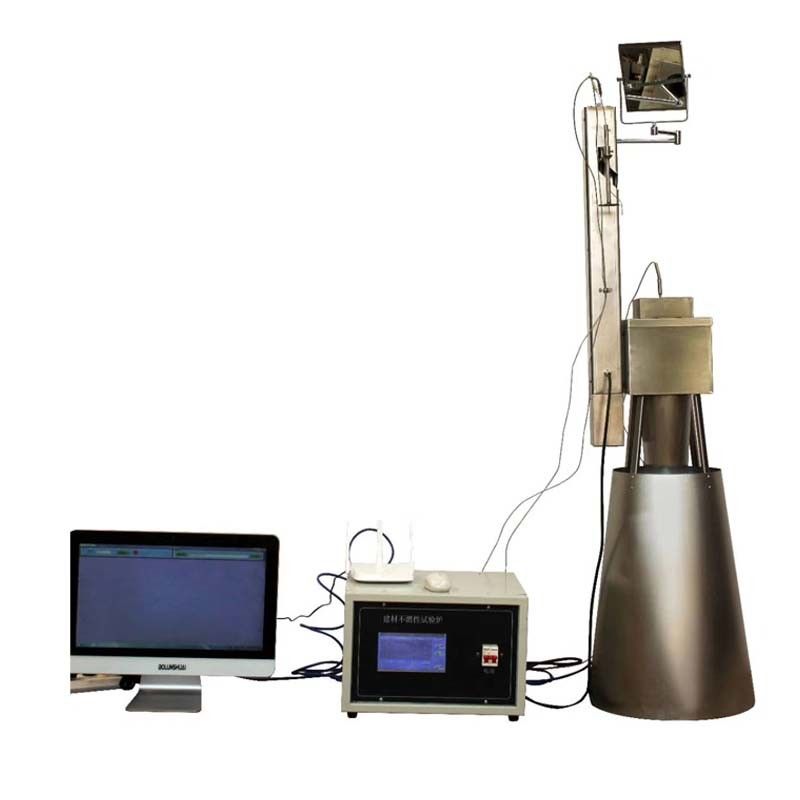

Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C

Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C
Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C

Large Image :  Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-JCB-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200 pieces
Contact Now

Automatic Building Material Flammability Tester Non Combustibility Test Apparatus 900 º C

Description
Heating Power: 1.5KW Power: AC220V±10%, 50Hz,Current≤10A
Stability Time: RT-750°C≤1h Power Heating Voltage: 0~100 V Adjustable
Highlight:

Building Material Flammability Tester

,

Flammability Tester 900 º C

,

Automatic Non Combustibility Test Apparatus

ISO 1182 Automatic Building Material Non-Combustibility Test Furnace 900 º C
1. Product features
1. Dual control mode: the operation can be controlled on the touch screen or the computer, and the operation mode can be switched arbitrarily;A device can operate several computers at the same time, several computers can be online at the same time, LAN sharing can be achieved;
2. With automatic lofting function, the sample can be put into the furnace automatically after the temperature is stable, and the sample basket can be rotated 90 degrees automatically after the outlet of the furnace, when the sample is changed.Automatic lofting process can be stopped at any time, the sample basket can be returned to the initial position automatically;
3. Adopt microcomputer technology and silicon controlled technology to adjust the temperature of furnace body through power
4. High degree of automation, display and record the temperature of furnace, sample center and sample surface during the test, and the operation prompt will pop up automatically for the test step
5. It can query the historical curve and automatically judge the temperature balance
6. The test process is safe, reliable and easy to operate
7. The customized mold is used to form the refractory furnace with good heat insulation performance
8. Use high quality strip heaters, furnace temperature may rise to 900 ºC
9. PLC+NAbview professional software can display the temperature inside the furnace, sample center temperature and sample surface temperature curve in real time, which can realize automatic control, data collection and processing, data storage and output measurement results.
10. Observation mirror is equipped on the top to facilitate users to safely observe the burning state of samples in the furnace.

Design Standard
GB/ T 5464-2010 GB/T8624 ISO1182 fire reaction test for building products-non-combustible test


2. Main Technical Specification

Furnace specifications Φ40cm Height 1.5m
80/20 Ni-cr resistance  specification Thickness 0.2mm,width 3mm
Automatic sampling device L 8cm, W 8cm, H 83cm
Sample basket travel track W 2cm,L 38cm
Range of extension of the observation mirror Φ45*50(mm)
heating furnace tubes Inner diameter Φ75mm±1mm,out diameter Φ90mm±1mm, height 150mm±1mm,rate of power 2KW
thermocouple Nickel-chrome-nickel-silicon armored thermocouple, outer diameter 1.5mm, wire diameter 0.3mm, electric wire power: 2KW
Temperature stabilization time in furnace RT-750ºC Stable to do test,about 1 hour
Power AC220V±10%, 50Hz,Current≤10A;
Stability time RT-750°C≤1h
Temperature measurement accuracy ≤±0.5ºC
heating power 1.5KW
Power heating voltage 0~100 V Adjustable
Place the thermocouple in the furnace, the sample center thermocouple and the sample surface thermocouple
A thermocouple scanning device that rotates and lifts 360 degrees
Stainless steel tapered air stabilizer and cylinder guide cover
The software automatically controls the heating rate and the furnace body temperature in stages
Heating source is preheating to 750±5degree,,max temp in furnace 900degree,furnace temperature  750±5°C,temperature drift 10min not exceed 2ºC
 A central copper hammer device in the furnace is required to calibrate the temperature in the furnace. The connected curves shall be within the range of the curve required by the standard
The furnace wall temperature needs to be calibrated with a thermocouple, and the temperature of the furnace wall needs to be calibrated with a scanning thermocouple at three equal angles
The software includes the current regression to judge the temperature balance conditions
3. Parts list in package
Furnace 1set
Control box 1set
basket 1pcs
Low plate 1pcs
Connect wire 1pcs
Operation manual 1pcs
certificate of quality 1pcs
