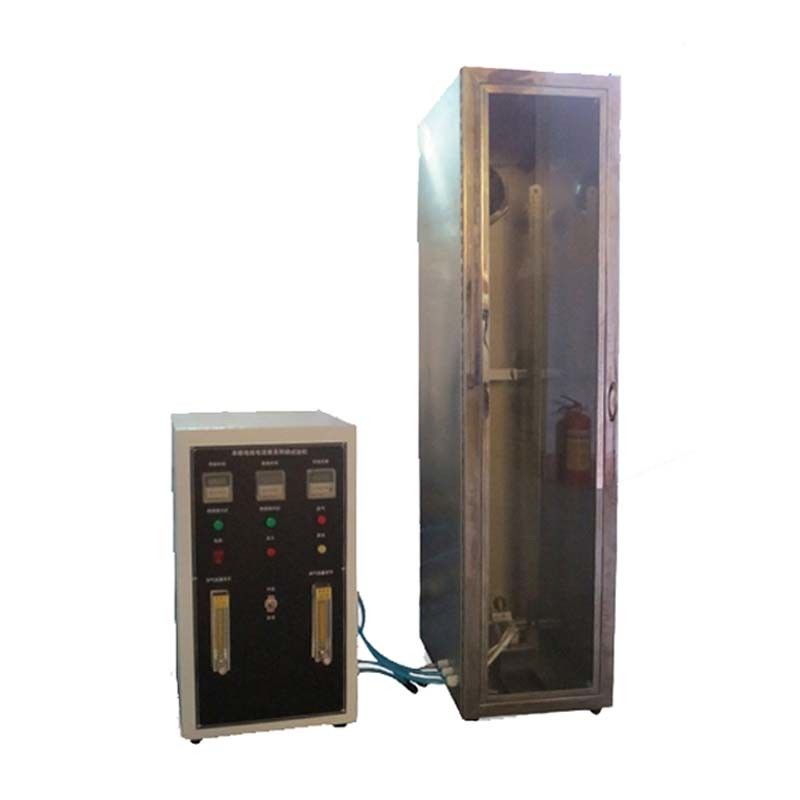

Single Wire And Cable Vertical Flammability Tester For Plastic Wire IEC 60332

Large Image : Single Wire And Cable Vertical Flammability Tester For Plastic Wire IEC 60332

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Model Number:	LR-K005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	200 pieces

Contact Now

Single Wire And Cable Vertical Flammability Tester For Plastic Wire IEC 60332

Description

Highlight:

Single Wire Flammability Tester

Flammability Tester IEC 60332

IEC 60332 Single Wire and Cable Vertical Flammability Tester for Plastic Wire

1. The reference standard
In 2008, IEC60332‐1‐2, GB/T 18380.13‐2008, IEC60332‐1‐2 ‐2‐2 ‐2‐2 ‐2‐2 ‐2‐ 1, EN50265‐ 1, GB/T5169.14‐2007 and IEC60695‐ 2.

2. Technical specifications
The vertical combustion test machine of single wire and cable is suitable for measuring the non-spreading performance of single plastic wire, control line, crosslinking, elevator, Marine and mine cable.Still can do self-extinguishing high low smoke zero halogen flame retardant polyolefin insulation material and 105 ºC low smoke zero halogen flame retardant olefin irradiation vertical burning test of insulation material.The device is the equipment for the testing of a single wire cable, which has the advantages of high accuracy, automatic timing, automatic end test and simple operation.

3. The basic specifications

Combustion chamber	the size of the box body is 300x, 1200 x depth and 450mm;
Combustion burner	1KW combustion nozzle (based on GB/T 5169.14-2007 /IEC 60695-11-2: 2003 standard), the blue flame height is 50 ~ 60mm, and the total height of the flame is 170 ~ 190mm.
Gas	the gas with a high purity of 95%
Sample installation	A. Sample length: 600-plus / 25mm; The distance between the upper bracket of two horizontal supports and the upper margin of the lower bracket was 550mm;
For fire time	0.1-999.9S continuous setting, the flame can be continuously burnt during the set time.
Installation position of the burner	the upper bracket of the blue flame contact point distance is 475mm, and the vertical axis of the spray lamp and the sample is 45 degree Angle
Control function	manual or automatic;
Range of gas flow	100-1000ml/min;
Air flow range	1-10l/min;
Pressure gauge	0~0.75kpa range adjustment
Ignition mode	high voltage automatic ignition
