IEC 884 Needle Flame Tester Apparatus Flammability Test Equipment 700 ºC

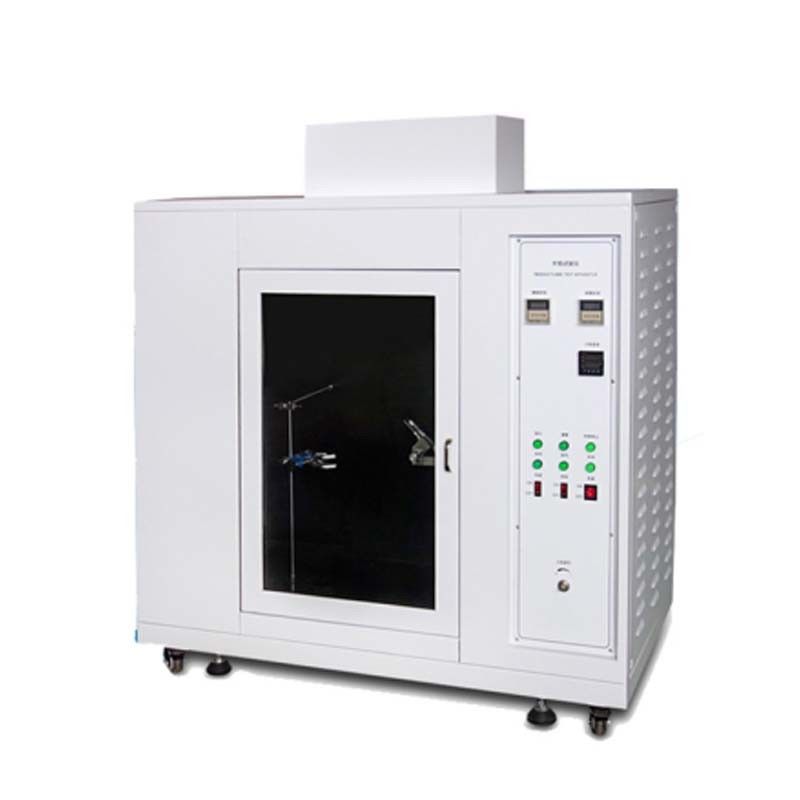

Large Image : IEC 884 Needle Flame Tester Apparatus Flammability Test Equipment 700 ºC

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-K003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC 884 Needle Flame Tester Apparatus Flammability Test Equipment 700 ºC

Description

Temperature Range:	Ambient To 1000°C	Size:	Standard
Ignition Source:	Gas Burner	Warranty:	12 Months
Power Source:	AC Or DC	Power Supply:	220V, 50Hz
Highlight:	IEC 884 Needle Flame Tester , Needle Flame Tester 700 ºC , IEC 884 Needle Flame Test Apparatus

IEC 884 Needle-Flame Tester Flammability Test Equipment for Electric Components 700 ºC

1. The reference standard
IEC 884-1, GB2099.1, VDE, IEC335, GB4706.1, GB5169.5, UL1694.

2. Technical specifications
This product according to used in electronic, electrical products due to fault conditions, such as through the leak path of fault current, components or parts of overheating, such as bad contact also may cause fire, it may be shot into the nearby on the part of the test is simulation under fault conditions inside the product produced by the small flame, simulation technology is used to evaluate the fire risk.For small parts (or components) hot wire test or horizontal - vertical combustion test method is not suitable, can cite needle flame test method.If the sample is ignited during the hot wire test, a needle flame test is required for the combustion hazard.Suitable for electronic electrical products, household appliances, components, such as: terminal, centrifugal switch, electric rice cooker socket.

3. The basic specifications

1) volume of the box	≥0.5 m3 , with glass observation door
2) fuel	butane gas
3) burner specification	more than 35 mm long, inner Ø0.5mm±0.1mm,Outside diameter less than Ø 0.9 mm
4) flame height	12mm ± 1mm adjustable
5) flame temperature	100 ºC to 700 ºC within 23.5 ± 1 S
6) timer	adjustable within the range of 0 ~ 99 minutes and 99 seconds, the combustion time can be set, and the combustion duration can be recorded
7) product features	the combustion chamber and main mechanical parts of this tester are all made of stainless steel, with beautiful shape, smoke resistance and gas corrosion resistance.Time and digital display, three - dimensional adjustable fixture, automatic control system, independent ventilation, easy to use observation records, stable and reliable.With a temperature measuring device.
8) power supply	AC220V / 50Hz

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
