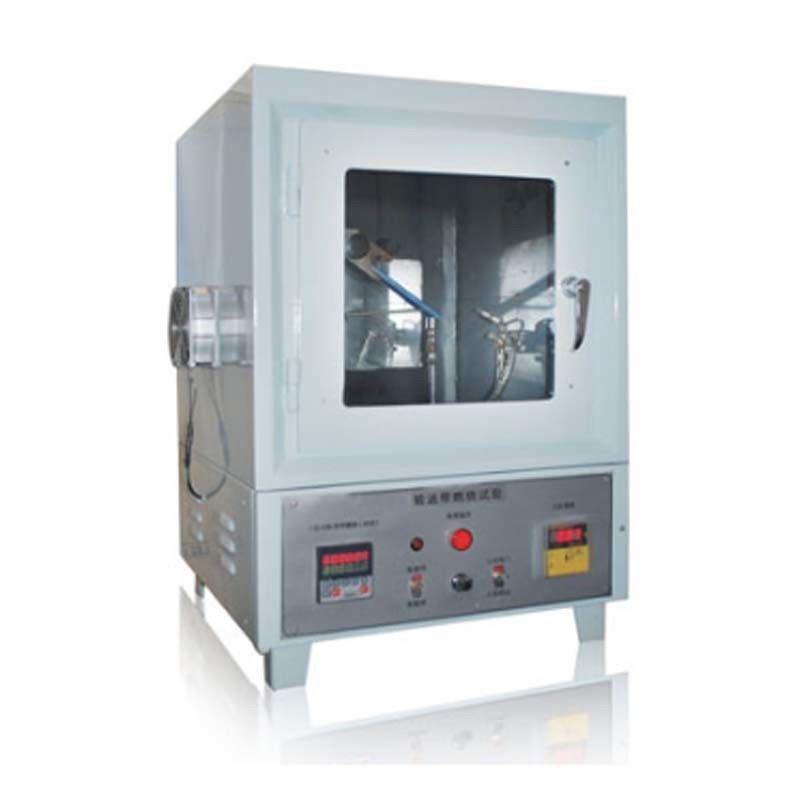

Conveyor Belt Flammability Test Chamber Burning Chamber Flame Spread Tester 1000 °C Flammability Tester

ISO 340 Conveyor Belt Flammability Burning Chamber Flame Spreading Characteristics Test 1000 °C

1. Scope of Application
Suitable for determination of flammability and flame propagation characteristics of conveyor belts.
2. Meet the standards
Meet the requirements of AS1334.10 -- 1994 standard for the Determination of Flammability and Flame Propagation characteristics of The Conveyor Belt.

3. Main Features
3.1 Propane lamp is automatically controlled;
3.2 Ignition mode: Automatic high pressure ignition is adopted
3.3 Propane lamps can be adjusted;
3.4 Button key control;
3.5 The whole device is easy and fast to operate.

4. Main technical parameters

Maximum flame temperature	1000°C
Equipped with temperature verification device
Temperature error	±50ºC;
Gas source	≥95% propane gas;
Combustion timing	0~99.99s/m arbitrary setting;
Timing of flame transmission	0~99.99s/m;
Combustor	1.5mm high-quality steel through electrostatic high-temperature baking paint;
The combustion chamber adopts anti-corrosion coating, and the coating is black;
Studio size	50cm*50cm*50cm;
Machine weight	95kg
