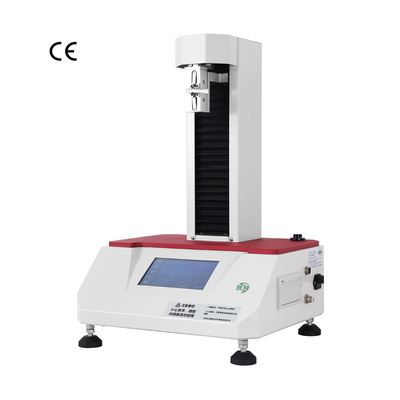

ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine

Used to determine performance indicators—such as breaking strength, breaking elongation, load at specified elongation, elongation at specified load, and creep—for various materials including single fibers, metal wires, hair, and carbon fibers.

GB/T 14337, GB/T 9997, GB/T 13835.5, ISO 5079, ISO 11566, ASTM D 3822, BS 4029, etc.

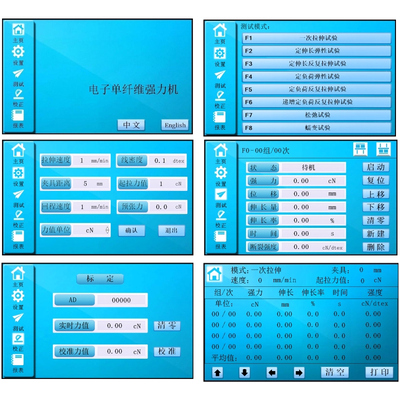

• Features an industrial touchscreen with Chinese/English menus; the interface is clear, intuitive, and easy to operate.
• Utilizes a 32-bit Cortex-M3 microprocessor, offering strong anti-interference capabilities and rapid data processing.
• Employs high-speed A/D conversion with a high sampling rate, ensuring high testing accuracy.
• Automatically displays, analyzes, and saves test data; includes a built-in thermal printer for direct report printing.
• Uses pneumatic clamping for uniform grip; clamping pressure is adjustable to prevent specimen slippage or damage, ensuring ease of use.
• The drive mechanism incorporates ball screws, synchronous belts, and synchronous pulleys, ensuring stable operation, high precision, and low noise.

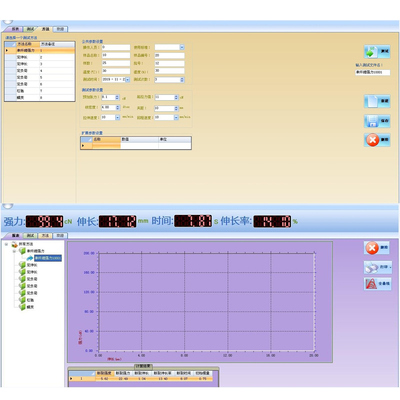

• Supports online operation with professional PC software.
