ASTM D4491 Geotextiles Water Permeability Test Machine Geotextile Vertical Hydraulic Conductivity Tester Permittivity Analyzer

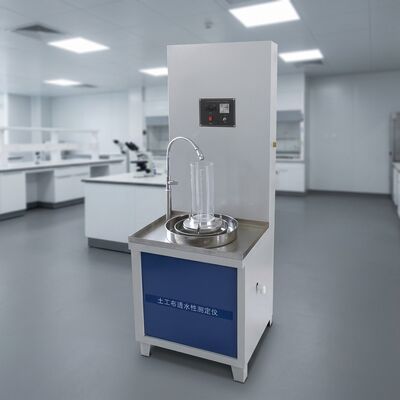

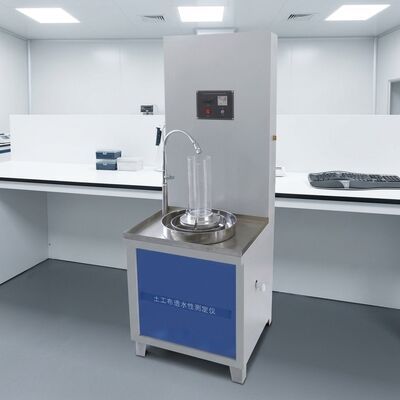

Large Image : ASTM D4491 Geotextiles Water Permeability Test Machine Geotextile Vertical Hydraulic Conductivity Tester Permittivity Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D4491 Geotextiles Water Permeability Test Machine Geotextile Vertical Hydraulic Conductivity Tester Permittivity Analyzer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Dimensions:	820 * 730 * 1850 (mm)
Highlight:	ASTM D4491 geotextile permeability tester , geotextile vertical hydraulic conductivity analyzer , water permeability test machine for geotextiles

ASTM D4491 Geotextiles Water Permeability Test Machine Geotextile Vertical Hydraulic Conductivity Tester Permittivity Analyzer

Application Scope

This tester is applicable for measuring the water permeability of various types of geotextiles. Its performance complies with the requirements of the "Test Method for Water Permeability of Geotextiles" standard in ASTM D4491-2017 Method A - Constant Head Test, and under specified conditions, it measures the water flow rate passing vertically through a single layer of geotextile.

Standard for Water Permeability Tester for Geotextiles (Floor-Type)

ASTM D4491-2017,JPG E50

AASTM D4491 Geotextiles Water Permeability Test Machine Geotextile Vertical Hydraulic Conductivity Tester Permittivity Analyzer

Technical Specification

Maximum water head difference	250 mm H2O
Graduated cylinder	1000ml (with an accuracy of 10ml)
Inner diameter of the clamping device	φ50 ± 0.5mm
Power Supply	220V
Applicable sample thickness	20mm
Dimensions	820 × 730 × 1850 (mm)
Time Controller	0 - 99.9 seconds
Temperature range	5 - 100℃
