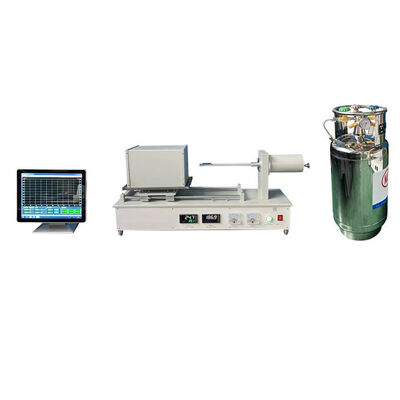

Low-Temperature Dilatometer -60- +200℃ Thermal Expansion Coefficient Tester Linear Expansion Coefficient Test Machine Equipment

Temperature Range

-60°C ~ +200°C, adjustable; liquid nitrogen cooling, resistance wire furnace heating

Deformation Measurement Range

±1.5 mm

Displacement Sensor

Sensitivity: 0.1 µm, automatic range calibration

Temperature Control Accuracy

±1°C

Calculation Function

Auto calculation of thermal expansion coefficient and linear expansion value

Compensation Function

Automatic compensation coefficient application, manual adjustment supported

Specimen Size

Cylindrical: Ø5–10 × 50–100 mm

Square: 5–10 × 5–10 × 50–100 mm

Power Supply

220 V, 2 kW

Operation Characteristics

Auto temperature control, data recording, storage and printing; supports temperature-expansion coefficient curve output. Computer interface operation, complete supporting software equipped

Fixture & Push Rod Material

Quartz

Standard Configuration

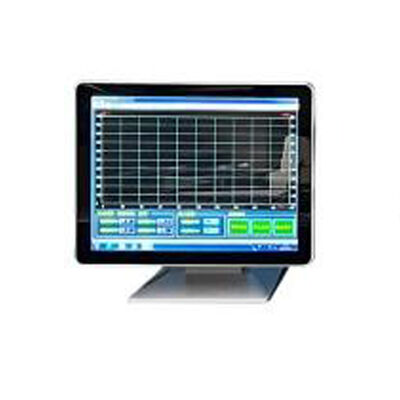

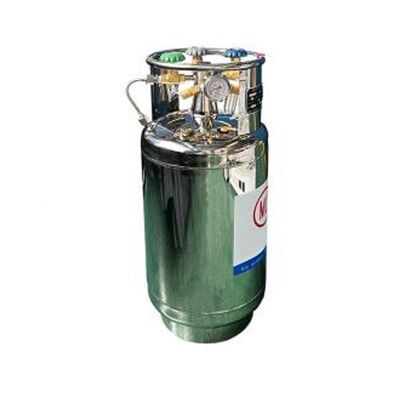

1 low-temperature dilatometer host, 1 software package, 1 self-pressurizing liquid nitrogen tank, 1 computer
