Vertical Pneumatic Electric Small Padder Cotton Fiber Fabrics Rolling Machine Textile Laboratories Fabric Testing Equipment

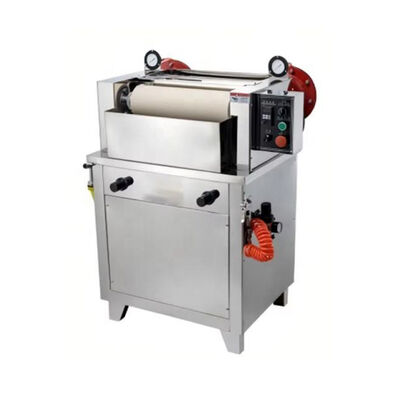

Large Image : Vertical Pneumatic Electric Small Padder Cotton Fiber Fabrics Rolling Machine Textile Laboratories Fabric Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Vertical Pneumatic Electric Small Padder Cotton Fiber Fabrics Rolling Machine Textile Laboratories Fabric Testing Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Weight:	160kg
Dimensions:	9008001230mm
Highlight:	Vertical pneumatic fabric rolling machine , Electric small padder textile equipment , Cotton fiber fabrics testing machine

Vertical Pneumatic Electric Small Padder Cotton Fiber Fabrics Rolling Machine Textile Laboratories Fabric Testing Equipment

Product Introduction

This machine is suitable for small-batch, multi-variety fabric testing and sampling in textile laboratories. It is mainly used to test the padding rate of fabrics or to evaluate the dyeing, finishing effects, and quality of fabrics.

Vertical Pneumatic Electric Small Padder Cotton Fiber Fabrics Rolling Machine Textile Laboratories Fabric Testing Equipment

Technical Specification

Model	A	B
Type	Vertical	Horizontal
Roller length	420mm
Roller diameter	130mm
NBR Rubber hardness	700shore
Roller speed	0 ~ 18RPM adjustable
Max. pressure	0.6MPa
Pressure division	0.01MPa
Power supply	220V, 50Hz
Dimensions	9008001230mm	9006501200mm
Weight	160kg	160kg
