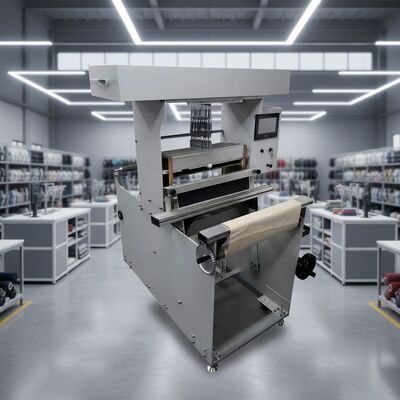

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

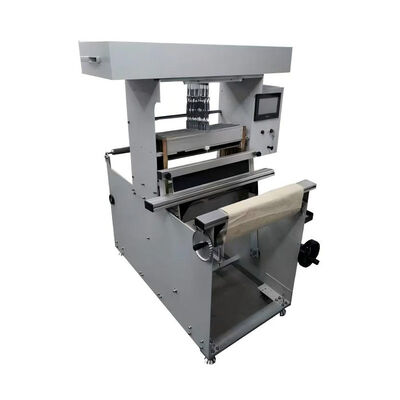

Large Image : Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Warp Feeding:	Manual
Number Of Heddle Frames:	16 Frames	Power Supply:	Rated Power 220V, Frequency 50Hz
Weaving Width:	Reed Width 40 Cm
Highlight:	semi-automatic sample weaving machine , laboratory fabric weaving equipment , electrical textile testing machine

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Product Description

Scope of Application

Used for sample weaving of various fabrics such as cotton, wool, silk, linen, chemical fibers, and blends. This equipment features low noise, reliable and wear-resistant structure, and stable performance. It is widely used in the textile, printing and dyeing, and yarn-dyed industries, as well as in related teaching and research units of universities and colleges.

Instrument Features

(1) Adopts a pneumatic shedding device, avoiding the drawbacks of traditional mechanical structures that are prone to wear; features smooth operation, low noise, and high reliability;

(2) The electrical system uses PLC control and a touch screen interface for operation, with a reserved computer interface for PC and PLC communication, making operation simple and convenient.

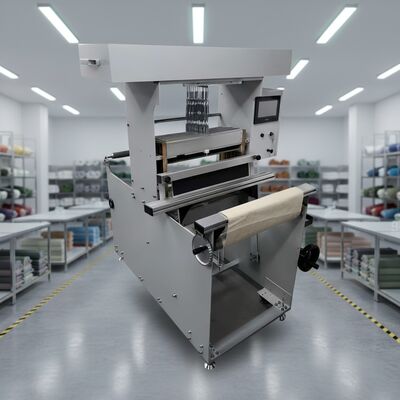

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Technical Specification

Weaving Width	Reed width 40 cm
Number of Heddle Frames	16 frames
Shedding	(Computer) PLC control, pneumatic opening; electronic dobby shedding, photoelectric control. The structure adopts pneumatic opening with slow start and slow release mechanisms for smooth shedding; pattern input via touch screen, storage and use of at least 50 pattern files, patterns are not lost (unless actively deleted). Organizational cycles of 1000 wefts or more can be set.
Take-up	Manual take-up
Warp Feeding	Manual
Weft Insertion	Manual
Color Selection	Manual
Machine Body Structure	Uses seamless rectangular steel tube integral welding, and the machine surface is treated with baked paint.
Weft Insertion Bracket	Uses a rigid aluminum alloy weft insertion bracket, with bearings on the bracket base.
Air Source Control	Air pressure 0.45-0.8 MPa, maximum air consumption 200 L/min
Power Supply	Rated power 220V, frequency 50Hz
