Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

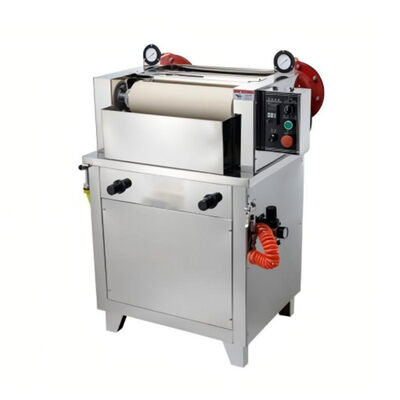

Large Image : Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Roller Width:	420 Mm
Dimensions:	850 Mm * 680 Mm * 1100 Mm (Length * Width * Height)	Roller Hardness:	Shore 70
Power Supply:	AC220V/50Hz
Highlight:	resin padding machine for fabrics , horizontal padding mangle tester , fabrics dyeing test equipment

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Product Description

Product Overview

This machine is suitable for small-batch, multi-variety fabric testing and sampling in textile laboratories. It is mainly used to test the padding rate of fabrics or to evaluate the dyeing, finishing effects, and quality of fabrics.

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Technical Specification

Material	The entire machine is made of SUS304 stainless steel
Roller Material	Nitrile rubber
Roller Hardness	Shore 70
Roller Width	420 mm
Roller Diameter	Φ130 mm
Roller Pressure	0.03~0.6 MPa (approximately 0.3 kg/cm²~6 kg/cm²)
Working Speed	Variable frequency speed control, 0~18 rpm
Power Supply	AC220V/50Hz
Padding Rate	25%~110%, selected according to process requirements
Working State	The rollers are driven by large-section diaphragm cylinders on both sides, powered by compressed air, and the pressure is controlled by a pressure regulating valve to meet production process requirements
Safety Protection System	Panel emergency stop switch, knee-operated emergency stop switch, providing comprehensive protection during use
Dimensions	850 mm × 680 mm × 1100 mm (Length × Width × Height)
