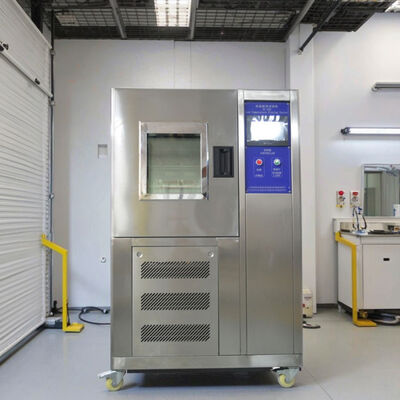

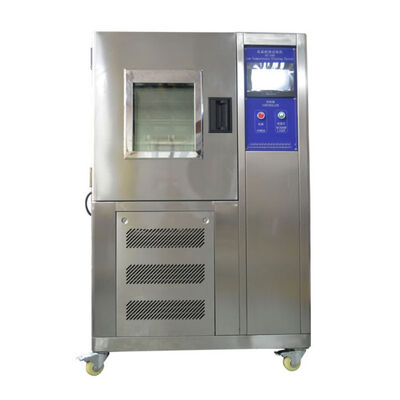

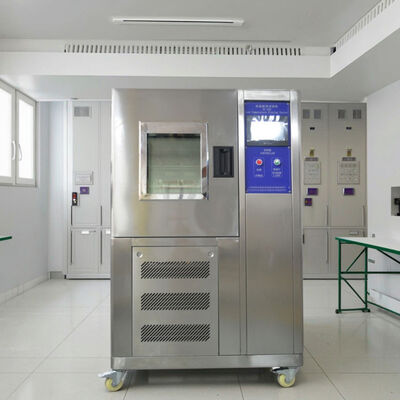

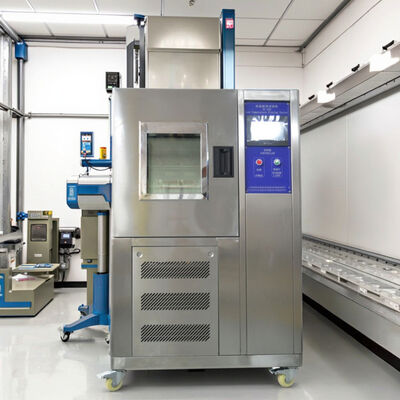

ASTM D1593 ISO 20344 Vertical Low Temperature Cold Resistant Tester JIS K6545 Materials Cold Resistance Test Machine

Large Image : ASTM D1593 ISO 20344 Vertical Low Temperature Cold Resistant Tester JIS K6545 Materials Cold Resistance Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D1593 ISO 20344 Vertical Low Temperature Cold Resistant Tester JIS K6545 Materials Cold Resistance Test Machine

Description

Type:	Testing Machine	Accuracy:	---
Application:	Auto Testing, Laboratory Testing, Lab Testing, Textile Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	Ip56
Voltage:	220 V, 380 V	Warranty:	1 Year
Logo/graphic Design:	Hot Stamping	Weight:	200kg
Volume:	(110 * 105 * 160) Cm	Inner Box Dimensions:	(600 * 600 * 550) Mm
Power Supply:	AC 380V 50Hz Or AC 220V 50Hz
Highlight:	ASTM D1593 cold resistance tester , ISO 20344 textile testing machine , low temperature materials test machine

ASTM D1593 ISO 20344 Vertical Low Temperature Cold Resistant Tester JIS K6545 Materials Cold Resistance Test Machine

Product Description

Introduction

The vertical low-temperature cold resistance testing machine is used to test the cold resistance of finished shoes, rubber, plastics, shoe soles, synthetic leather, etc., in order to understand the material or finished product's adaptability to low-temperature climates or cold regions. This machine is made of stainless steel and can be equipped with various clamping fixtures to meet different requirements.

Compliant with the standards

ASTM-D1790,D1593,1052,JIS-K6545,HB-T2877,CNS-7705,ISO 20344,GB/T 20991-2007

ASTM D1593 ISO 20344 Vertical Low Temperature Cold Resistant Tester JIS K6545 Materials Cold Resistance Test Machine

Technical Specification

Inner and outer box material	Stainless steel #304
Controller	Touchscreen control
Temperature range	(1) Normal temperature - 30℃; (2) Normal temperature - 50℃ (Optional)
Optional inner box accessories	Leather resilient fixture (additional fixtures for finished shoe bending resistance, outsole flexing resistance, etc., are optional)
Protection devices	Thermal shutdown protection, leakage current shutdown protection, over-temperature protection, overload protection, etc.
Control accuracy	±0.3℃
Temperature distribution uniformity	±0.1℃
Cooling rate	From room temperature to -30℃ approximately requires
Refrigerant	R404, an environmentally friendly refrigerant
Compressor	Original fully sealed type
Compressor start-up delay	5 minutes
Power consumption	(4 - 6) KW
Insulation materials	Rigid foam and glass wool
Counter	LCD, 0 - 999,99
Window	(210 × 35 × 270) mm, two-layer vacuum chamber
Window light	P1 lamp, 5W
Power supply	AC 380V 50Hz or AC 220V 50Hz
Motor	Beltless, imported multi-stage gear reduction motor
Inner box dimensions	(600 × 600 × 550) mm
Volume	(110 × 105 × 160) cm
Weight	200kg
