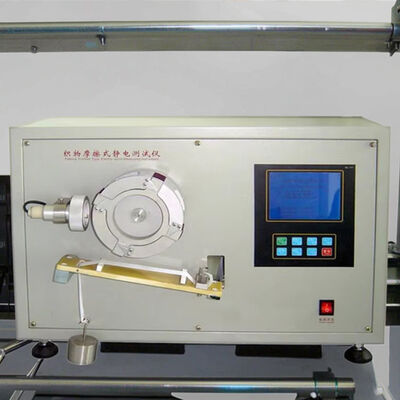

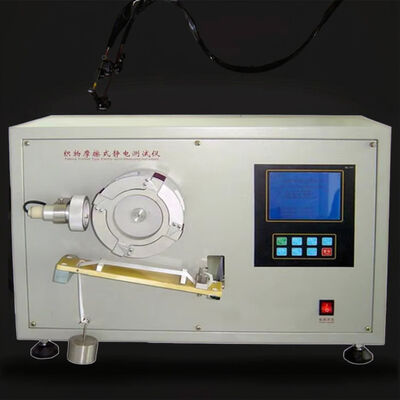

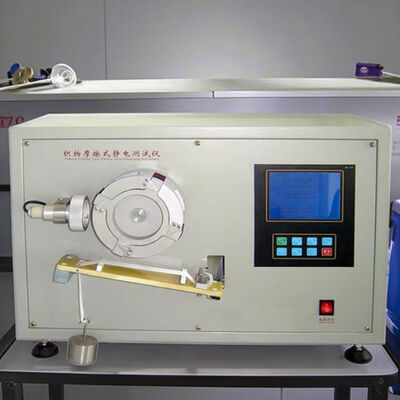

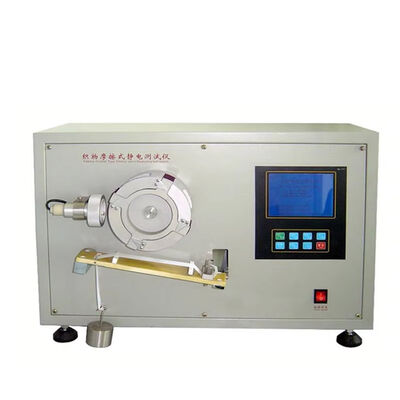

FZ/T 64082 JIS L1094 Yarns Friction Static Tester Fabrics Textiles Friction Static Electricity Testing Instrument Textil

Static voltage testing range and accuracy

0 - 10KV, accuracy: ≤ ±1%

Drum dimensions and rotational speed

Outer diameter (150 ± 1) mm, Width (60 ± 1) mm, Rotational speed: (400 ± 1) r/min

Friction time

Adjustable from 0 to 99.99 seconds (The test is scheduled for 1 minute)

Half-life time range

0 - 99.99 seconds

Size of friction cloth and pre-applied tension

(150 ± 1) mm × (25 ± 1) mm, pre-applied tension: (4.9 ± 0.1) N

Sample size

(80 ± 1) mm × (50 ± 1) mm

Dimensions of main unit

450mm × 315mm × 320mm

Dimensions of electrical control box

450mm × 256mm × 185mm

Working power supply

AC 220V, 50Hz, 200W

Weight

Approximately 50 kilograms
