CST-50 Charpy Impact Projector Impact Specimen Gap Inspection Equipment Impact Specimen Notch Projector

Large Image : CST-50 Charpy Impact Projector Impact Specimen Gap Inspection Equipment Impact Specimen Notch Projector

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

CST-50 Charpy Impact Projector Impact Specimen Gap Inspection Equipment Impact Specimen Notch Projector

Description

Screen Diameter:	180mm	Square Table Size:	110×125mm
Round Table Diameter:	90mm	Table Glass Diameter:	70mm
Work Table Travel Lengthways:	±10mm	Work Table Travel Crosswise:	±10mm
Work Table Travel Vertical:	±12mm	Table Swivel Range:	0~360°
Instrument Magnification Rate:	50x	Objective Lens Magnification:	2.5x
Projection Objective Magnification:	20x	Light Source:	12V 100W
Power:	220V 50Hz	Overall Dimensions:	515×224×603mm
Weight:	About 18kg
Highlight:	Charpy impact specimen projector , Impact specimen notch inspection equipment , Hydraulic testing machine with projector

CST-50 Charpy Impact Projector - Impact Specimen Gap Inspection Equipment

Product Description

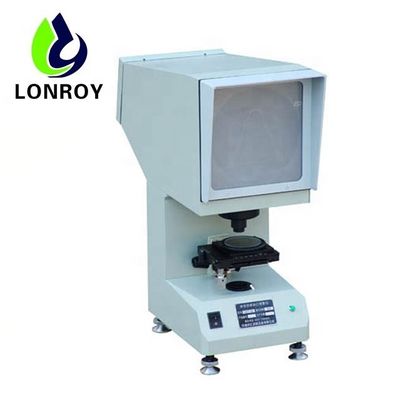

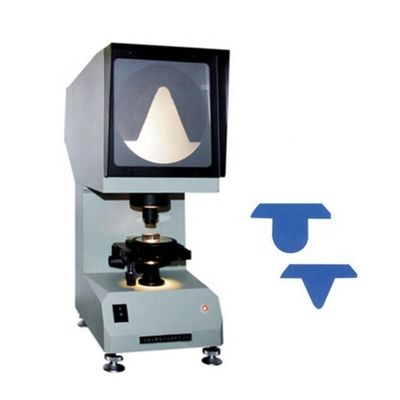

The CST-50 Charpy Impact Projector is a specialized optical instrument developed according to GB/T229-1994 standards for metal Charpy impact testing. This equipment uses optical projection to magnify impact test specimen V-type and U-type notches 50 times, projecting them onto a screen for comparison with standard templates to determine notch quality compliance.

Key Advantages

Precisely evaluates Charpy V-type and U-type notch quality
50x magnification for accurate visual inspection
Simple operation with intuitive comparison method
Compliant with GB/T229-1994 testing standards

Working Principle

The projector illuminates the specimen with a light source through condenser optics. The objective lens projects a magnified outline of the specimen notch onto the projection screen. Through secondary magnification and reflection, the screen displays a positive image matching the actual specimen position for precise comparison with standard templates.

Technical Specifications

Parameter	Specification
Screen diameter	180mm
Square table size	110×125mm
Round table diameter	90mm
Table glass diameter	70mm
Work table travel (lengthwise)	±10mm
Work table travel (crosswise)	±10mm
Vertical adjustment	±12mm (unscaled)
Table rotation range	0-360° (unscaled)
Total magnification	50x
Objective lens magnification	2.5x
Projection magnification	20x
Light source (halogen tungsten lamp)	12V, 100W
Power supply	220V, 50Hz
Dimensions (L×W×H)	515×224×603mm
Weight	Approx. 18kg
