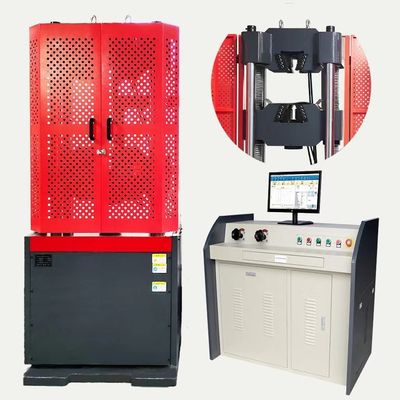

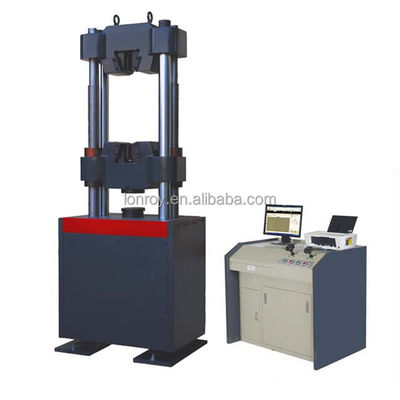

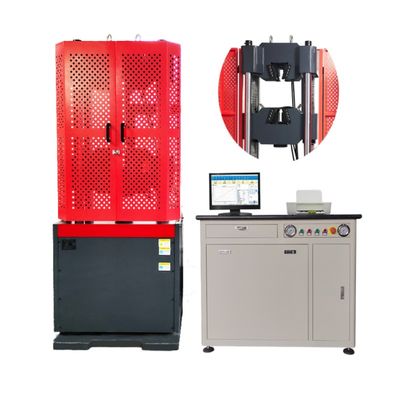

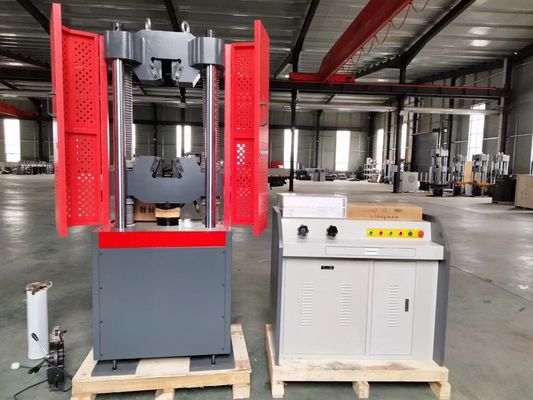

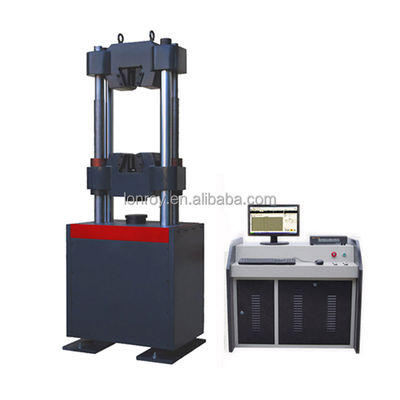

600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar

600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar
600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar

Large Image :  600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar

Description
Max Force: 600 KN Measure Force Range: 2%-100%
Test Force Resolution: Max Load 1/300000 Deformation Error: < ±1%
Total Weight: 1900 Kg Voltage: 220 V
Protection Class: IP65 Max Test Range: 4%-100%
Test Force Error: < ±1% Deformation Resolution: Max Deformation 1/300000
Max Tensile Space: 600 Mm Compression Space: 500 Mm
Piston Stroke: 200 Mm Column Spacing: 450 Mm
Motor Power: 2 KW
Highlight:

600KN hydraulic tensile testing machine

,

universal bending testing machine for rebar

,

microcomputer screen hydraulic testing machine

600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar
This high-precision hydraulic universal testing machine is designed for tensile, compression, bending, and shear tests on rebar and other metal materials, compliant with GB, ISO, and ASTM standards.
Key Features
  • Two-column, two-screw main frame with bottom-mounted oil cylinder
  • High-precision A/D converter for accurate force, displacement, and deformation measurement
  • Motor-driven adjustable lower beam with reducer and chain drive mechanism
  • Advanced hydraulic system with high-pressure pump and oil filtration
  • Computer-controlled data collection and analysis with real-time display
  • Comprehensive safety protections including overload and limit protection
Control System Capabilities
  • Supports tensile, compression, shear, and bending tests
  • Test editor for creating custom standards and procedures
  • Customizable test parameters and Excel report formats
  • Flexible printing options for test results
Safety Features
  • Overload protection (activates at >3% of max test force)
  • Piston limit position protection
  • Beam position limit protection with automatic shutdown
Technical Specifications
Max test force (kN) 600
Max Test range (kN) 4%-100%
Test force resolution Max load 1/300000
Maximum tensile test space (mm) 600
Compression space (mm) 500
Column spacing (mm) 450
Maximum clamping range (round sample) (mm) Φ6-Φ40
Total motor power (kW) 2
Total weight (kg) 1900
600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 0
600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 1
600KN Microcomputer Screen Explicit Hydraulic Universal Tensile Strength Bending Testing Machine for Rebar 2
