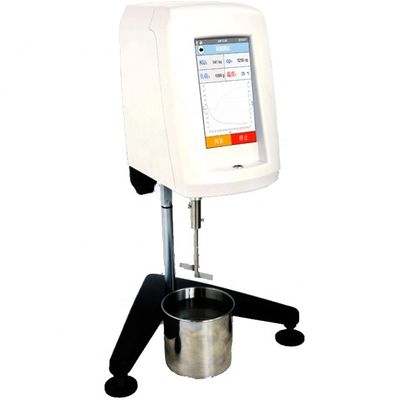

High Temperature Brinell Viscometer Brinell Rotational Viscometer Brookfield Rotational Viscosimeter

Large Image : High Temperature Brinell Viscometer Brinell Rotational Viscometer Brookfield Rotational Viscosimeter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	RVDV-1T-H

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

High Temperature Brinell Viscometer Brinell Rotational Viscometer Brookfield Rotational Viscosimeter

Description

Outline Dimension:	300 × 300 × 450(mm)	Repetitive Error:	±0.5% (Newtonian Liquid)
Measurement Error:	±1% (Newtonian Liquid)	Control Display:	5-inch Color Touch Screen
Rotor Speed:	0.3 - 100 Rpm (998 Speeds)	Measuring Range:	6.4 - 3.3M MPa.s (model Dependent)
Rotor Types:	21, 27, 28, 29 (Standard), 0 (Optional)	Sample Dosage:	7.8ml - 21ml (rotor Dependent)
Shear Response:	Yes	Timing Function:	Yes
Real-time Display:	Time-viscosity Curve, Temperature-viscosity Curve	Kinematic Viscosity:	Density Input Required
Self-built Procedures:	30 Groups	Data Preservation:	30 Sets
Working Power:	110V/60Hz Or 220V/50Hz
Highlight:	High Temperature Brinell Viscometer , Rotational Viscometer Brookfield , Brinell Rotational Viscosimeter

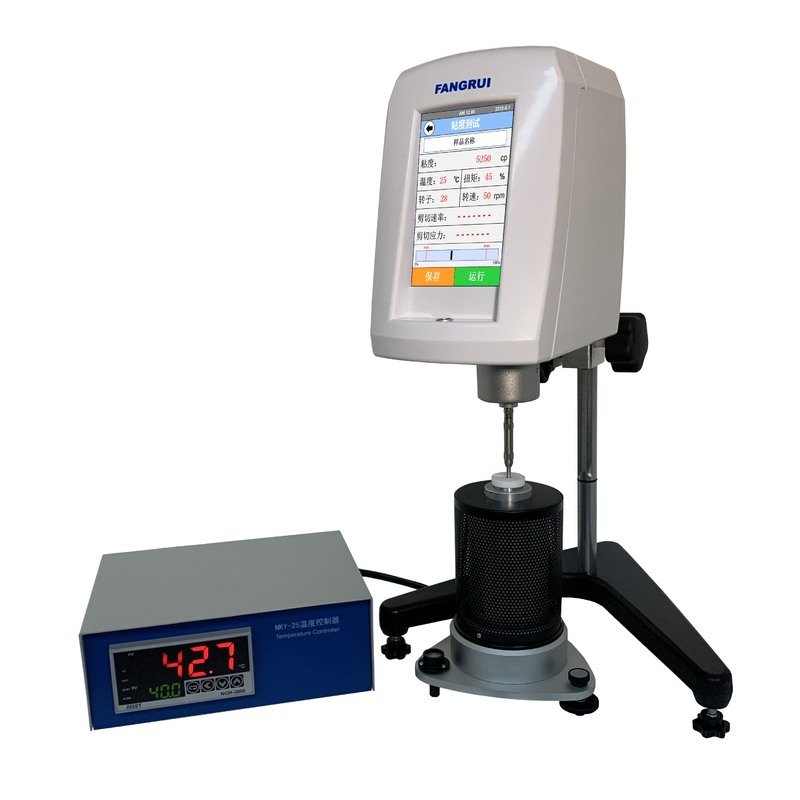

High Temperature Brinell Viscometer - Brinell Rotational Viscometer

Precision rotational viscometer designed for high-temperature viscosity measurements of materials like hot melt adhesives, asphalt, and plastics. Features advanced ARM technology with Linux operating system for accurate, reliable viscosity testing.

Key Features

ARM technology with Linux system for fast, convenient viscosity testing
Computer-calibrated measurement ranges for high precision with minimal error
Comprehensive display showing viscosity, temperature, shear rate, shear stress, and more
Timed measurement capability with 30 built-in testing procedures
Stepless speed regulation with wide range of rotational speeds
Real-time viscosity curve display for shear rate and time analysis
Bilingual operation system (English/Chinese)
Measurement range from 50 to 80 million MPA.S
Optional ultra-low viscosity adapter for paraffin wax and polyethylene wax measurements

Technical Specifications

Model	RVDV-1T-H	HADV-1T-H	HBDV-1T-H
Control/Display	5-inch color touch screen
Speed (r/min)	0.3 - 100, Stepless speed, 998 speeds available
Measuring Range (mPa.s)	6.4-3.3M	12.8-6.6M	51.2-26.6M
Rotor	21,27,28,29 (Standard), No.0 (Optional)
Measurement Error	±1% (Newtonian liquid)
Repetitive Error	±0.5% (Newtonian liquid)
Working Power Supply	Viscometer mainframe: wide voltage operation (110V/60Hz or 220V/50Hz) Heating furnace and temperature control unit: 220V50Hz
Dimensions	300 × 300 × 450(mm)

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
