DRH-III Double Plate Thermal Conductivity Measuring Instrument Protective Hot Plate Meter

Large Image : DRH-III Double Plate Thermal Conductivity Measuring Instrument Protective Hot Plate Meter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DRH-III Double Plate Thermal Conductivity Measuring Instrument Protective Hot Plate Meter

Description

Accuracy:	0.001	Power:	50
Protection Class:	IP55	Voltage:	220 V
Power Supply:	220V50HZ,500W	Test Time:	60 Minutes
Thermal Conductivity Range:	0.001 ~ 3.000W/m.K	Thermal Conductivity Accuracy:	±2%
Repeatability:	±1%	Hot Surface Temperature:	Room Temperature ~ 150℃
Temperature Resolution:	0.01℃	Cold Surface Temperature:	0 ~ 60℃
Heating Power:	100W+1%	Sample Size:	100100(5~80)mm, 200200(5~80)mm, 300300(5~80)mm, 600600(5~80)mm
Pressurization System:	Automatic
Highlight:	double plate thermal conductivity meter , hot plate thermal analyzer , protective thermal conductivity measuring instrument

DRH-III Double Plate Thermal Conductivity Measuring Instrument Protective Hot Plate Meter

Product Description

The DRH-III double plate thermal conductivity tester operates on the principle of unidirectional stable thermal conductivity. It measures heat flow through the sample's effective heat transfer area along with temperature differences and thickness to calculate thermal conductivity with high precision. Features include automatic data acquisition, processing, report printing, and storage with short measurement time, accurate data, excellent repeatability, and high automation.

Purpose

This instrument tests thermal conductivity for various materials including plastics, rubber, glass, fibers, insulation boards, foams, concrete, wood, and more. It also accommodates granular, bulk, and soft materials.

Applicable Standards

GB/T10294-2008 - Thermal insulation materials steady-state thermal resistance determination
GB/T3399-1982 - Plastic thermal conductivity test method (heat protection plate)
GB/T10801.1-2002 - Polystyrene foam insulation measurement
GB/T10801.2-2002 - Extruded polystyrene foam (XPS) measurement
GB/T3139-2005 - Fiber reinforced plastics thermal conductivity test
GB/T17794-2008 - Flexible foam rubber insulation products

Technical Parameters

Thermal conductivity range: 0.001 ~ 3.000W/m.K (±2% accuracy, ±1% repeatability)

Hot surface temperature: Room temperature ~ 150℃ (0.01℃ resolution)

Cold surface temperature: 0 ~ 60℃ (0.01℃ resolution, optional ranges available)

Specification	Value
Heating power of metering plate	100W+1%
Test time	60 minutes
Power supply	220V 50HZ, 500W
Sample size options	100×100×(5-80)mm 200×200×(5-80)mm 300×300×(5-80)mm (standard) 600×600×(5-80)mm Custom sizes available

Key Features

Online temperature calibration technology improves accuracy by 3x
Reduced overall testing time
Wide measuring range: 0.001 ~ 3.00W/(m·K)
Computer-automated thickness measurement reduces human error
Automatic pressurization system for testing under various pressures
Versatile measurement capabilities for hard plates, granular, bulk, soil, soft materials, and liquids

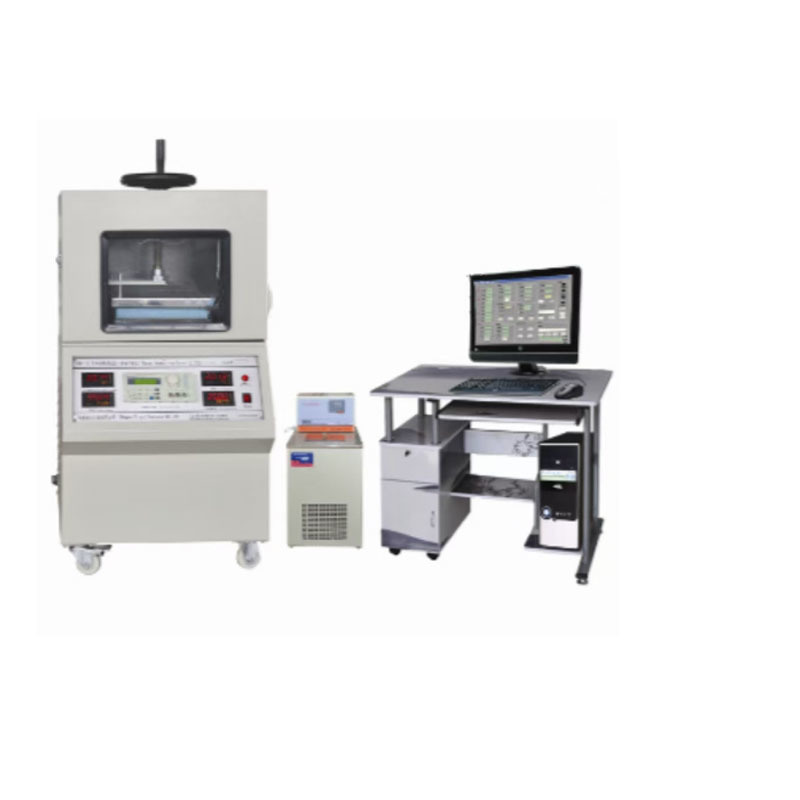

DRH-III Double Plate Thermal Conductivity Measuring Instrument

DRH-III Instrument Close-up View
