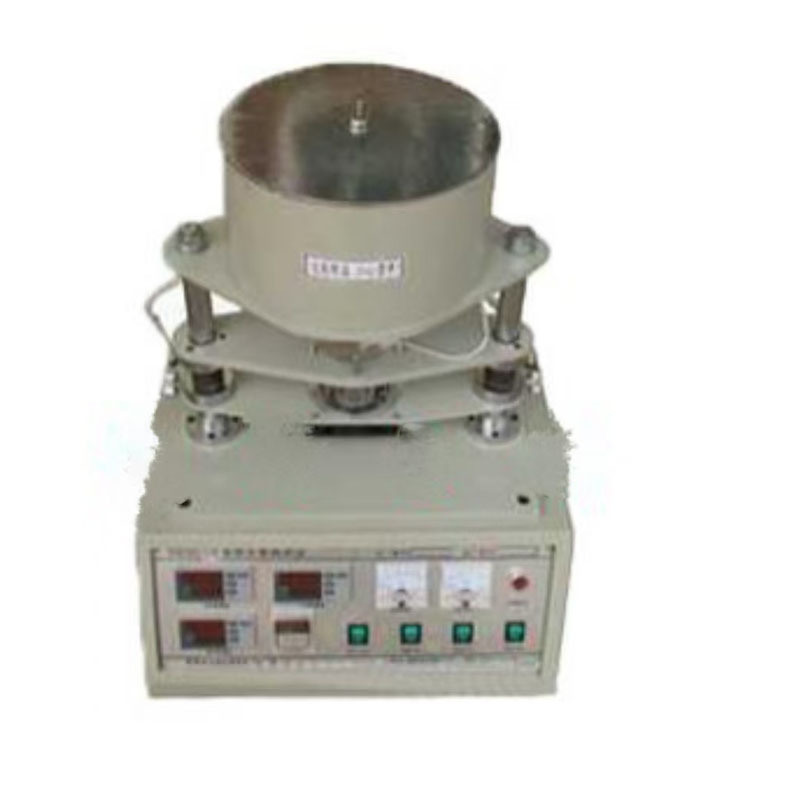

DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer

DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer

Large Image :  DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer

Product Details:
Place of Origin: Guangdong, China
Brand Name: lonroy
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now

DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer

Description
Accuracy: Better Than 10% Protection Class: IP57
Voltage: 220 V Power Supply: 220V, 50HZ
Test Range: 0.1~300w/m*k Heat Source: Heating Copper Block, 36V Safe Voltage
Test Materials: Solid, Powder, Glue Samples Measuring Temperature Range: Room Temperature ~250ºC, Up To 550ºC
Temperature Accuracy: 1ºC Timing Range: 0~999.9s
Timing Resolution: 0.1s Thermal Conductivity Accuracy: Better Than 10%
Sample Size: 130x(1-100)mm Heat Source Voltage: 36V
Power Type: Electronic
Highlight:

solid thermal conductivity tester

,

thermal analyzer testing machine

,

thermal conductivity meter analyzer

DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer
The DRXL thermal conductivity tester accurately measures thermal conductivity of various materials including ceramics, rubber, glass, insulation materials, refractory materials, and both metallic and non-metallic materials.
Key Features
  • Wide testing range suitable for diverse materials
  • Precise temperature control and measurement
  • Safe voltage heating system
  • Versatile sample accommodation
Technical Specifications
Parameter Specification
Test Range 0.1~300 W/m·K
Power Supply AC 220V, 50HZ
Heat Source Heating copper block using 36V safe voltage
Test Materials Solid materials (metallic and non-metallic), powder, glue samples
Temperature Range Room temperature ~250°C (up to 550°C)
Timing Range 0~999.9s (resolution 0.1s)
Measurement Accuracy Better than 10%
Sample Size 130x(1-100)mm
After-Sales Service
  • Manufacturer-provided installation, debugging, and operator training
  • 3-year warranty from acceptance date with lifelong maintenance
  • Prompt service response for equipment failures
  • Regular user visits
DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer 0 DRXL Solid Thermal Conductivity Tester Meter Testing Machine Analyzer 1
