ASTM C518 High Precision Thermal Insulation Material Conductivity Tester DRPL-IV Thermal Resistance Detecting Instrument

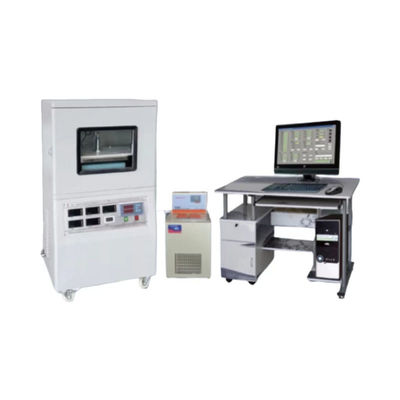

Large Image : ASTM C518 High Precision Thermal Insulation Material Conductivity Tester DRPL-IV Thermal Resistance Detecting Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM C518 High Precision Thermal Insulation Material Conductivity Tester DRPL-IV Thermal Resistance Detecting Instrument

Description

Thermal Conductivity Range:	0.0001 ~ 1W/mk	Measurement Accuracy:	1%
Sample Size:	50×50 ~ 300×300 (mm)	Measurement Time:	15-20min
Hot Surface Temperature:	Room Temperature ~ 99.9℃ (standard), Up To 499.9℃	Cold Surface Temperature:	0 ~ 99.9℃ (standard), -10 ~ 99.9℃
Temperature Control Accuracy:	0.1℃	Pressure Range:	0 ~ 1000N
Pressure Resolution:	0.1N	Sample Thickness Range:	0 ~ 50mm
Thickness Resolution:	1um	Host Dimensions:	550×450×1500mm
Host Weight:	100Kg	Voltage:	220 V
Protection Class:	IP57
Highlight:	ASTM C518 thermal conductivity tester , high precision thermal resistance detector , thermal insulation material analyzer

ASTM C518 High Precision Thermal Insulation Material Conductivity Tester DRPL-IV

Product Overview

The ASTM C518 High Precision Thermal Insulation Material Conductivity Tester DRPL-IV uses the internationally recognized heat flow meter method to detect thermal conductivity and thermal resistance. This computer-controlled instrument features automatic detection and report generation capabilities, offering exceptional measurement accuracy, reliability, and repeatability - particularly for low thermal conductivity measurements (accurate to 0.1mw).

Applications

Ideal for testing various materials including plastics, rubber, insulation materials, aerogel plates, and vacuum glass. Widely used in universities, research institutes, quality inspection agencies, and industrial facilities.

Compliance Standards

GB/T10295-2008 (Determination of steady-state thermal resistance and related properties of insulating materials)
ASTM C518-04 (Standard test method for steady-state heat flux measurements and thermal transmission properties by means of the heat flow meter apparatus)

Technical Specifications

Parameter	Specification
Thermal conductivity range	0.0001 ~ 1W/mk (accurate to 0.1mw/mk)
Measurement accuracy	1%
Sample size	50×50 ~ 300×300 (mm)
Measurement time	15-20 minutes

Key Features

Tests both solid and powder materials
Hot surface temperature control: Room temperature ~ 99.9°C (standard), up to 499.9°C available
Cold surface temperature control: 0 ~ 99.9°C (standard), -10 ~ 99.9°C available
Computer-controlled precision pressure clamping (0 ~ 1000N, resolution 0.1N)
Automatic sample thickness measurement (0 ~ 50mm, resolution 1μm)
Imported heat flow meter for stable, reliable performance
Fully automated computer testing with data printing and storage

Standard Configuration

Main unit (1)
Analysis software (Chinese/English versions)
HX-1005 precision low temperature constant temperature tank (temperature control accuracy 0.01°C)
Lenovo computer (optional)
Standard sample

Dimensions & Weight

Main Unit: 550×450×1500mm (L×W×H), 100Kg

Constant Temperature Tank: 300×350×530mm (L×W×H), 35Kg

Technical Support

1-year free warranty
Long-term technical services
Lifetime free software upgrades
Nationwide free installation and debugging
Mobile technical personnel available throughout the country
