DRX-III Hot Wire Thermal Conductivity Analyzer Tester

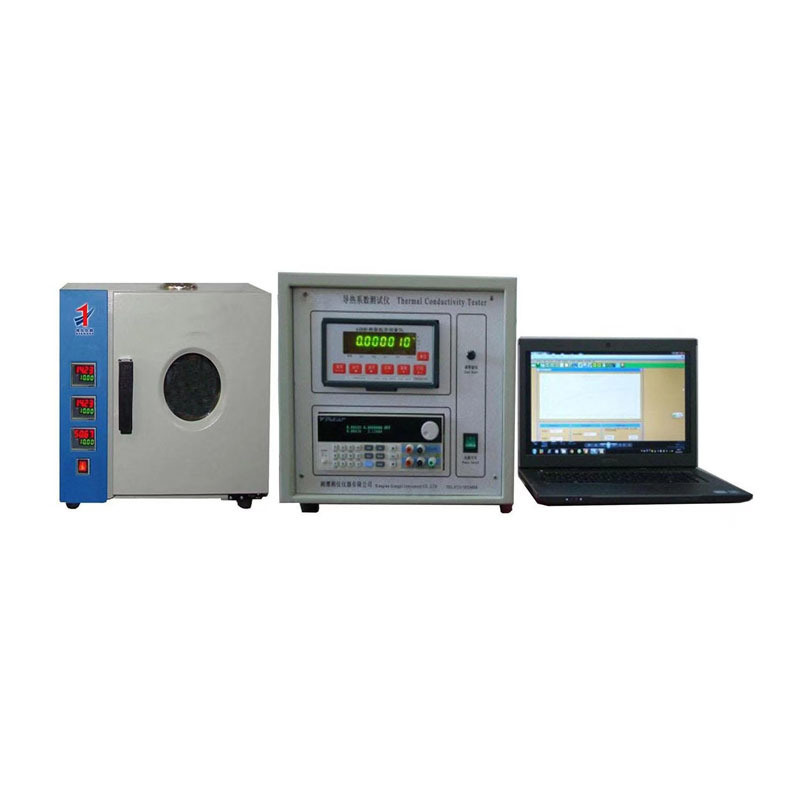

Large Image : DRX-III Hot Wire Thermal Conductivity Analyzer Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	lonroy

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DRX-III Hot Wire Thermal Conductivity Analyzer Tester

Description

Accuracy:	±3.0 %	Protection Class:	IP55
Voltage:	220 V, 380 V	Power Supply:	220v
Thermal Conductivity Range:	0.015 ~ 25.0 W/(m•K)	Test Temperature Range:	Room Temperature ~ 500 °C, Room Temperature ~ 1000 °C, Room Temperature ~ 1350 °C, Room Temperature ~ 1600 °C, -10 ~ 200 °C, -20 ~ 200 °C, -40 ~ 200 °C
Measurement Accuracy:	±3.0 %	Sample Size:	300mm×300mm×100mm (below), 2 Pieces
Temperature Resolution:	1 ~ 0.1ºC	Hot Wire Power:	Current Resolution 0.01mA, Voltage Resolution 0.1Mv
Measurement Method:	Transient Hot Wire Method, Cross Line Method, Parallel Line Method	Material Types:	Solid And Powder
Computer Interface:	Equipped	Measurement Parameters:	Thermal Conductivity Coefficient, Thermal Diffusivity, Specific Heat Capacity
Power Type:	Electronic
Highlight:	DRX-III thermal conductivity analyzer , hot wire thermal tester , thermal analyzer with warranty

DRX-III Hot Wire Thermal Conductivity Analyzer Tester

Product Description

The DRX-III Hot Wire Thermal Conductivity Tester utilizes the transient hot wire method, including cross line and parallel line methods, to measure thermal conductivity coefficient (thermal diffusivity) and specific heat capacity of solid and powder materials at various temperatures. This instrument features high precision, resolution, and reproducibility, with computer-controlled automatic measurement.

Key Features

Meets multiple industry standards including GB/5990, GB/T17106, GB 11205, and GB/T10297
Improved measurement accuracy and reproducibility compared to previous DRX-II model
Enhanced structural design for greater convenience
Includes cross hot wire method capability (also supports parallel line method for materials below 25W/m·K)
Computer interface and software for automatic detection and calculation

Technical Specifications

Parameter	Specification
Measurement Range (Parallel Line Method)	0.015 ~ 25.0 W/(m•K)
Test Temperature Range	Multiple options available: room temperature ~ 500°C, room temperature ~ 1000°C, room temperature ~ 1350°C, room temperature ~ 1600°C, -10 ~ 200°C, -20 ~ 200°C, -40 ~ 200°C (user selectable)
Measurement Accuracy	±3.0%
Sample Size	300mm×300mm×100mm (maximum), 2 pieces required
Temperature Resolution	1 ~ 0.1ºC
Hot Wire Power Supply	Current resolution 0.01mA, voltage resolution 0.1Mv
