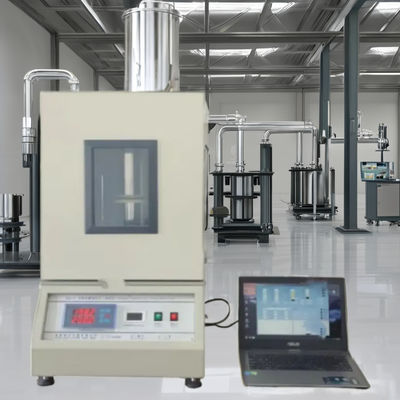

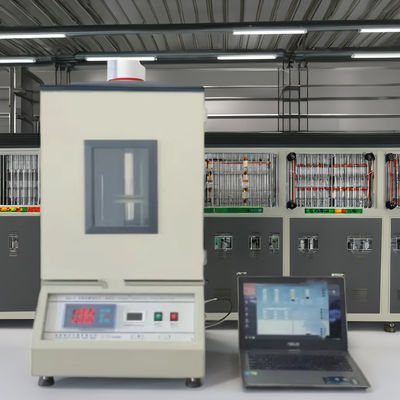

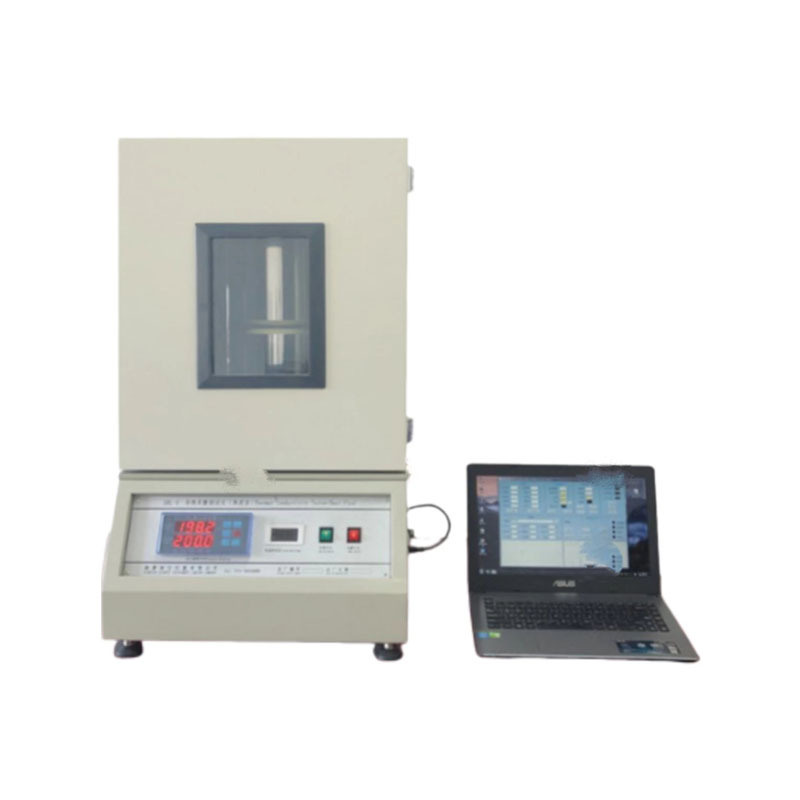

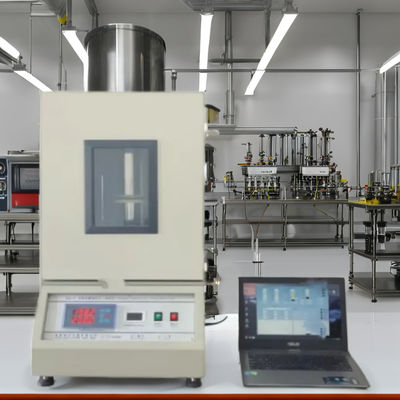

DRL-III ASTM D5470 Thermal Conductivity and Resistance Tester Essential Equipment

The DRL-III thermal conductivity tester is designed for precise measurement of thermal resistance in thin thermal conductors, solid electrical insulating materials, thermal conductive silicone grease, resin, rubber, beryllium oxide porcelain, alumina porcelain, and other materials. It also measures contact thermal resistance at solid interfaces and material thermal conductivity.

• Compliant with ASTM D5470-2017 standard
• Servo motor-controlled precision automatic pressure system
• 6-point temperature gradient detection for improved accuracy
• Thermal protection device reduces ambient temperature influence
• Measures thermal resistance curves under different pressures
• Automatic cold end temperature compensation
• Available in standard and space-saving compact models

• Thermal resistance under different pressures
• Material thermal conductivity
• Contact thermal resistance
• Aging reliability
• Material compression performance

• Metal materials (stainless steel)
• Thermal conductive silicone grease and pads
• Thermal engineering plastics
• Thermal tapes
• Aluminum substrates and copper clad plates
• Quartz glass and composite ceramics
• Advanced materials (copper foam, graphite paper/sheets)

• Main unit
• Analysis software (Chinese/English versions)
• HX-1005 precision low temperature constant temperature tank
• Optional Lenovo computer
• Two standard samples
• Accessory set (test boxes, forming dies)

• Standard model: 550×450×1550mm, 100kg
• Compact model: 500×400×780mm, 60kg
• Temperature tank: 300×350×530mm, 35kg

1-year free warranty with lifetime technical support and software upgrades. Nationwide installation and mobile technical service available.
