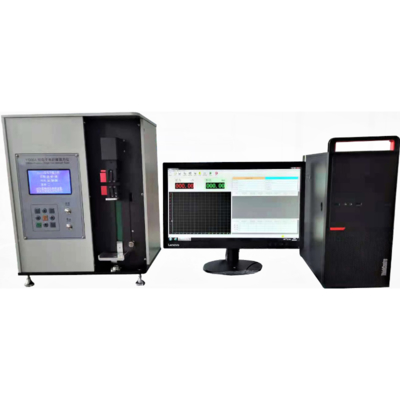

ISO 5079 BS 3411 Single Fiber Tensile Strength Tester DIN 53805 Single Fibers Elongation Test Machine

ISO 5079 BS 3411 Single Fiber Tensile Strength Tester DIN 53805 Single Fibers Elongation Test Machine

Scope of application

Used for testing the tensile strength and elongation performance of single fibers, detecting purchased materials and assessing the degree of fiber damage. Suitable for evaluating fiber damage during processing and as a routine quality control for purchased materials.

Compliant with standards

GB/T14337, ISO 5079, BS 3411, DIN 53805

Product Details

The instrument is ingeniously designed and easy to operate. It can measure various natural fibers, artificial fibers, synthetic fibers and high-performance fibers. It is a standard instrument for factories and laboratories.

Main features

Tensile elongation cyclic tensile test

Constant load cyclic tensile test

Relaxation and creep tests;

Rated load, over-range protection, automatic zero adjustment;

The computer controls the stretching process and collects data.

Real-time display of the cyclic stretching curve;

Calculate the tensile modulus and fracture energy based on the preset mode.

Technical specifications
