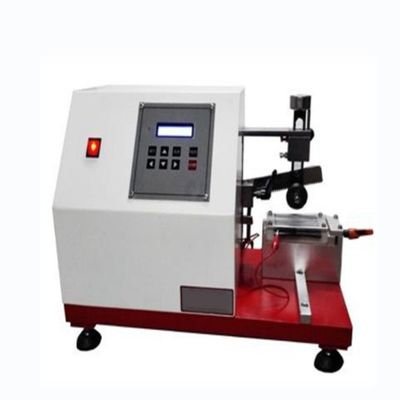

ISO 20344 EN 388 340 Glove Abrasion Resistance Tester Leather Cutting Resistance Strength Test Device

Large Image : ISO 20344 EN 388 340 Glove Abrasion Resistance Tester Leather Cutting Resistance Strength Test Device

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A180

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 20344 EN 388 340 Glove Abrasion Resistance Tester Leather Cutting Resistance Strength Test Device

Description

Product Name:	Glove Abrasion Resistance Tester	Customization:	Available
Warranty:	1 Year	Overall Dimensions (L × W × H):	550 × 400 × 250 Mm
Weight:	57.5 Kg	Power Supply:	1-phase (1∮), AC 220V, 50 Hz
Highlight:	ISO 20344 glove abrasion tester , EN 388 leather cutting resistance tester , textile strength test device

ISO 20344 EN 388 340 Glove Abrasion Resistance Tester Leather Cutting Resistance Strength Test Device

Test Machine Introduction

This test machine is specifically designed for testing the cutting resistance strength of shoe uppers, protective gloves, leather and other materials.

It is suitable for the knife-cutting test in the safety glove protection area, but not for those very hard material gloves.

Working principle

Place a rotating circular blade cutter on the sample placed on the dedicated test device. The blade moves back and forth under the specified load, automatically counts, stops automatically upon completion of the test, and compares the differences before and after the test to obtain the test results.

According to standards

EN ISO 20344, GB/T 20991, EN 388, EN 340

Technical specifications

Number of Test Samples	1 group
Horizontal Displacement	50 mm
Blade Rotation Direction	Opposite to the movement direction
Blade Cutting Speed	Maximum 10 cm/s
Blade Load	5 ± 0.05 N
Circular Blade Specifications	Diameter: 45 ± 0.5 mm; Thickness: 3 ± 0.3 mm
Total Cutting Angle	30° - 35°
Blade Material	Hard tungsten steel, hardness: 740 - 800 HV
Overall Dimensions (L × W × H)	550 × 400 × 250 mm
Counter	LCD display, range: 0 - 99,999,999
Weight	57.5 kg
Power Supply	1-phase (1∮), AC 220V, 50 Hz
