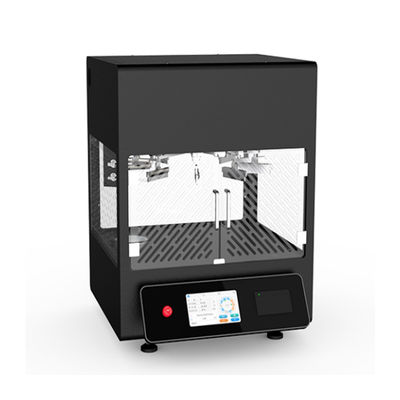

Textile Moisture Evaporation Rate Tester Fabric Absorption And Quick Drying Performance Test Machine

Textile Moisture Evaporation Rate Tester Fabric Absorption And Quick Drying Performance Test Machine

Introduction

The textile moisture evaporation rate tester is used to test and evaluate the moisture absorption and quick-drying performance of various textiles. The quick-drying property of textiles is assessed based on the moisture evaporation rate.

Test principle

After dropping a certain amount of liquid onto the sample, suspend the sample after the water droplets have spread on it on the equipment. Weigh the sample every certain period of time, and based on the changes in the sample's weight, calculate the evaporation rate and evaporation time of the moisture.

Applicable Standards

GB/T 21655.1-2008 "Textiles - Evaluation of Moisture Absorption and Quick-Drying Properties - Part 1: Single Combined Test Method"

Instrument features

1. Twelve-position testing, which can simultaneously complete the testing of twelve samples.

2. Utilize an imported high-precision weighing system with an accuracy of 0.001g.

3. Manual liquid addition and automatic liquid addition functions are optional.

4. High-precision automatic liquid dispensing system, enhancing the reliability of test results.

5. Utilizing a drive motor, the entire machine operates smoothly during rotation, ascent and descent, with low noise.

6. The rotation speed and test speed can be freely set.

7. Two different test termination methods are available, enhancing the efficiency of the test.

8. Large-screen touch operation, friendly human-computer interaction.

9. The test results are automatically calculated.

10. It has a printing function and can immediately save the test data.

Technical Specification
