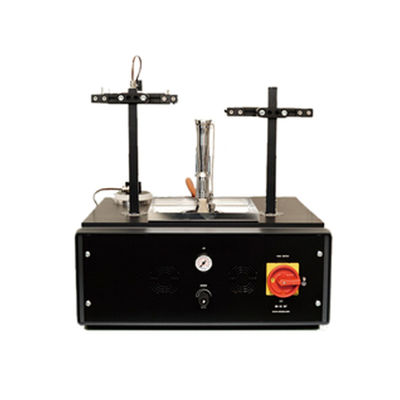

ISO 9151 EN 367 Fabric Convective Heat Protection Performance Tester Textile Thermal Properties Test Device

99% pure copper calorimeter

18g calorimetric sheet (Φ40mm, 1.6mm), surface treated with black paint, heat absorption coefficient > 0.9, equipped with copper thermocouple

Calorimeter installation module

Φ89mm, 13mm; equipped with Monolux500 insulation board with a density of (750 ± 50) kg/m³ and a thermal conductivity of 0.18 W/(m·K) ± 10%

Aluminum calorimeter positioning plate

149×149mm, 264g

Copper sample support frame

Size 150×150mm

Propane burner

The software automatically adjusts the flow rate to achieve a heat flux of 80 kW/m²

Pneumatic baffle

System automatically controlled, movement time 2 seconds

High-precision data recording system

Minimum resolution of analog quantity acquisition: 10 μV; time resolution: 0.1 seconds

Upper computer software configuration

Test parameters can be set

Software function (internal calibration)

Equipped with an internal calibration system, which optimizes the testing process

Software function (temperature curve & data output)

Real-time display of the temperature curve during the test; automatically calculates and outputs the material's heat transfer index

Dimensions

500 × 500 × 500 mm

Power Supply

230V, 50Hz
