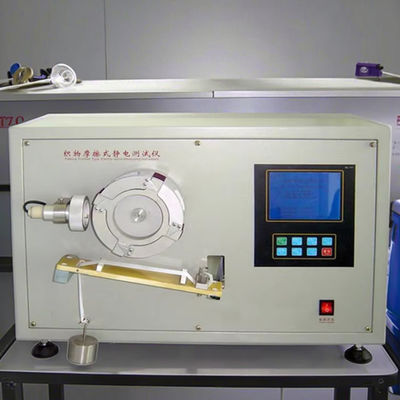

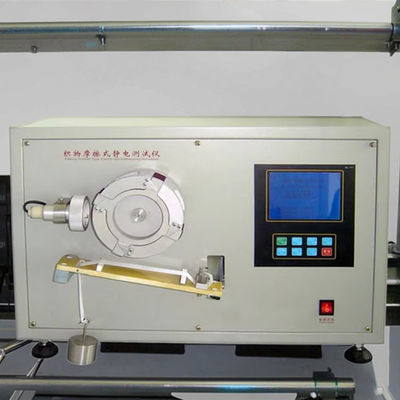

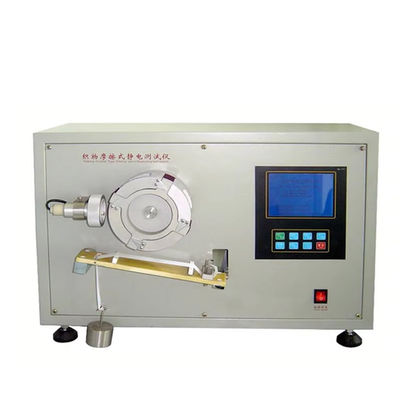

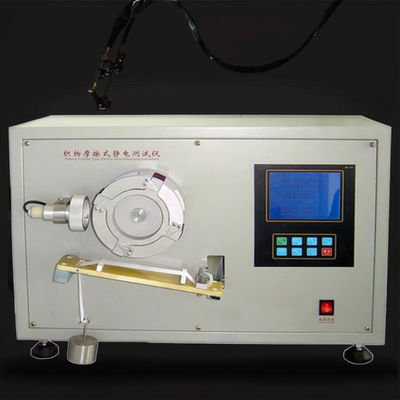

FZ/T 01061 JIS L1094 Fabric Friction Static Electricity Tester Yarns Abration Static Electricity Test Machine

Large Image : FZ/T 01061 JIS L1094 Fabric Friction Static Electricity Tester Yarns Abration Static Electricity Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A110

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

FZ/T 01061 JIS L1094 Fabric Friction Static Electricity Tester Yarns Abration Static Electricity Test Machine

Description

Product Name:	Fabric Friction-type Static Electricity Tester	Weight:	Approximately 50 Kilograms
Working Power Supply:	AC 220V, 50Hz, 200W	Dimensions Of Main Unit:	450mm × 315mm × 320mm
Sample Size:	(80 ± 1) Mm × (50 ± 1) Mm	Half-life Time Range:	0 - 99.99 Seconds
Highlight:	FZ/T 01061 Static Electricity Tester , JIS L1094 Static Electricity Tester , Fabric Abration Static Electricity Tester

FZ/T 01061 JIS L1094 Fabric Friction Static Electricity Tester Yarns Abration Static Electricity Test Machine

Introduction

Used to evaluate the static properties of fabrics or yarns and other materials after they become charged through friction.

Compliant with standards

GB/T 12703.5-2020, FZ/T 01061 (ZBW 04009), JIS L1094, FZ/T 64082-2021

Product Features

1. Randomly display the peak voltage, friction belt voltage and time.

2. Peak voltage is automatically locked.

3. Automatically measure the attenuation time.

Technical Specification

Static voltage testing range and accuracy	0 - 10KV, accuracy: ≤ ±1%
Drum dimensions and rotational speed	Outer diameter (150 ± 1) mm, Width (60 ± 1) mm, Rotational speed: (400 ± 1) r/min
Friction time	Adjustable from 0 to 99.99 seconds (The test is scheduled for 1 minute)
Half-life time range	0 - 99.99 seconds
Size of friction cloth and pre-applied tension	(150 ± 1) mm × (25 ± 1) mm, pre-applied tension: (4.9 ± 0.1) N
Sample size	(80 ± 1) mm × (50 ± 1) mm
Dimensions of main unit	450mm × 315mm × 320mm
Dimensions of electrical control box	450mm × 256mm × 185mm
Working power supply	AC 220V, 50Hz, 200W
Weight	Approximately 50 kilograms
