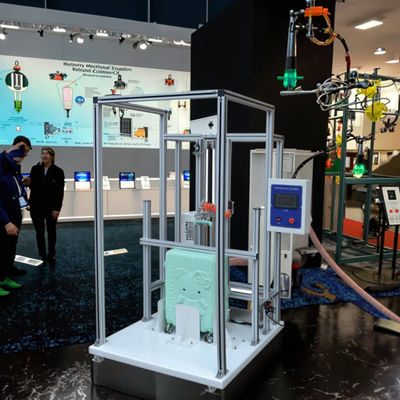

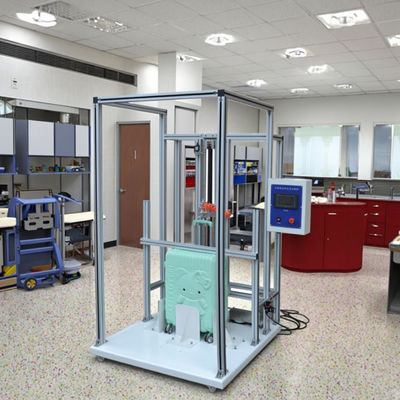

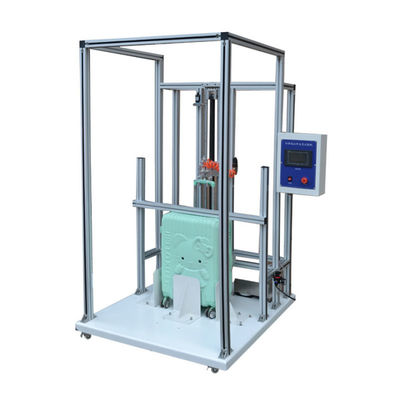

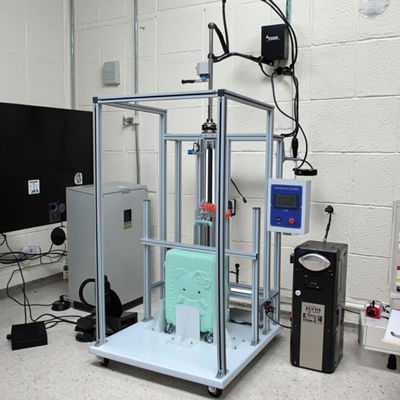

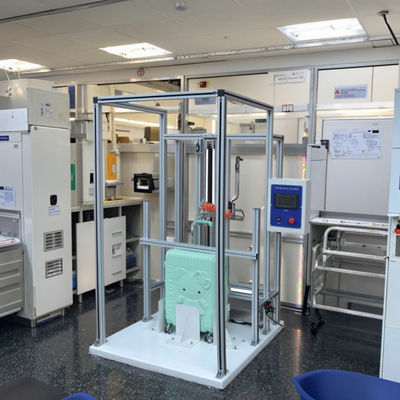

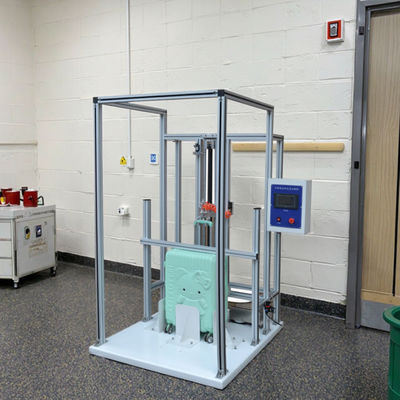

QB/T 2919 Baggage Pull Rod Reciprocating Fatigue Tester Suitcase Handle Reciprocate Fatigue Test Machine

Large Image : QB/T 2919 Baggage Pull Rod Reciprocating Fatigue Tester Suitcase Handle Reciprocate Fatigue Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A106

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

QB/T 2919 Baggage Pull Rod Reciprocating Fatigue Tester Suitcase Handle Reciprocate Fatigue Test Machine

Description

Weight:

Approximately 120 Kilograms

Power Supply:

AC 220V, 50/60Hz, 5A

Machine Dimensions:

80×90×180 Cm (Width × Depth × Height)

Operating Pressure:

5 - 8 Kg/cm²

Highlight:

Reciprocating Fatigue Test Machine

Suitcase Handle Reciprocating Fatigue Test Machine

QB/T 2919 Baggage Pull Rod Reciprocating Fatigue Tester Suitcase Handle Reciprocate Fatigue Test Machine

Introduction

The suitcase handle reciprocating fatigue testing machine conducts reciprocating fatigue tests on the handles of suitcases. During the test, the test pieces will be stretched, thereby testing the gaps, loosening, connection rod failures, deformation, etc. caused by the handles.

Compliant with standards

QB/T 2919-2010

Technical Specification

Test range	20 - 100 cm, adjustable
Stretching speed	Maximum 0 - 10 cm/sec, adjustable
Compression speed	Maximum 0 - 10 cm/sec, adjustable
Number of tests	0 to 999,999 times, automatic shutdown
Test power	Pneumatic cylinder
Sensing position	Four-point sensing position
Specimen height	Maximum 100 cm
Auxiliary equipment	Bag fixation clamp seat
Operating pressure	5 - 8 kg/cm²
Machine dimensions	80×90×180 cm (Width × Depth × Height)
Weight	Approximately 120 kilograms
Power Supply	AC 220V, 50/60Hz, 5A
