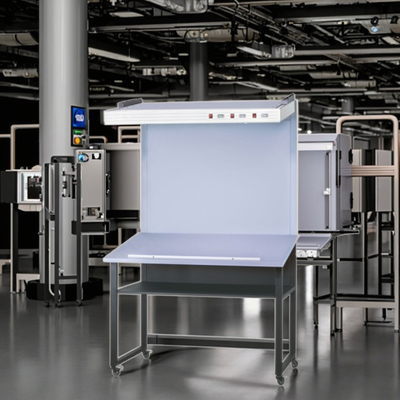

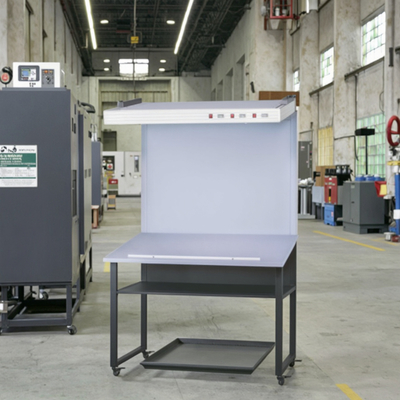

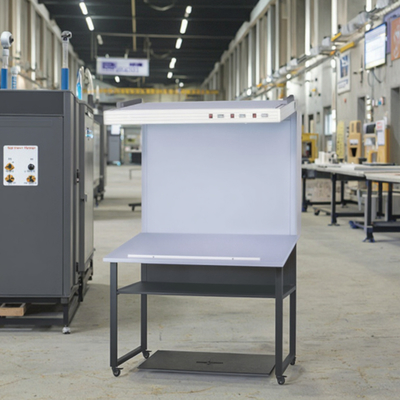

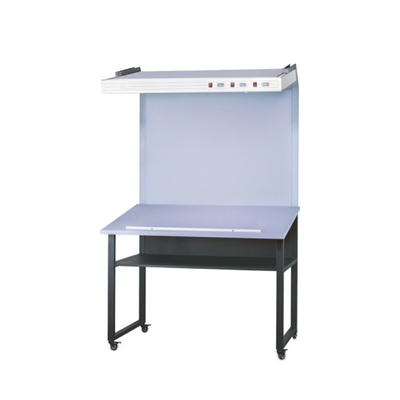

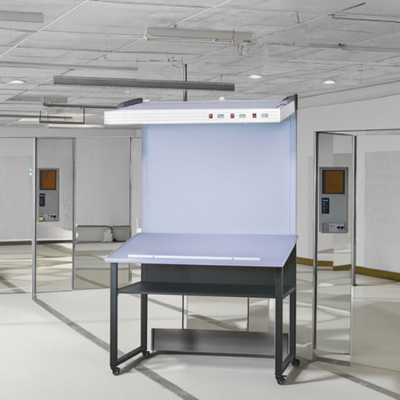

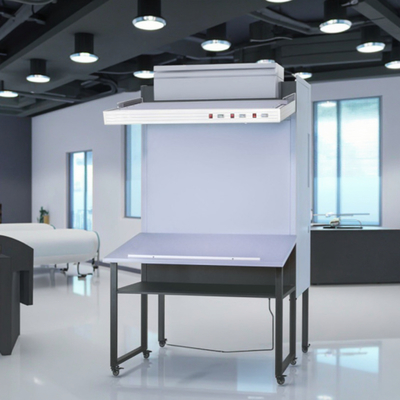

ISO 3664 Light Source Sample Viewing Table Printing Light Source Sample Inspection Platform Test Equipment

Light source

Compliant with the ISO3664 international standard

Color temperature type

D50 (5000K) or D65 (6500K)

Lamp Tube Series

Specifically for Graphica imported printing machines

Color Rendering Index

CRI = 98 - High color rendering index

Number of lamp tubes

36W × 4 (pieces) - with light source timer

Material

Made of pure metal, with solid materials used.

Workbench cabinet

Overall metal structure, thick sheet metal, sturdy and stable. One layer of storage cabinet with a shelf, no drawers.

Operation surface

The surface is designed with an incline, which conforms to the visual observation habit.

Hanging light source

Made of aluminum alloy profiles, with a streamlined design, it is elegant and stylish. It features imported reflective panels and a uniform light cover plate, ensuring even illumination.

Dimensions

Large double-opening size, easy to operate

Boundary Dimensions

1350mm × 900cm × 2174mm (length × width × height)

Table surface size

1350mm × 900mm (width × length)

Vertical surface dimensions

1350mm × 2174mm (width × height)
