Rolling Box Textiles Down Filling Performance Tester Fabrics Anti-pilling Performance Testing Machine

Rolling Box Textiles Down Filling Performance Tester Fabrics Anti-pilling Performance Testing Machine

Introduction

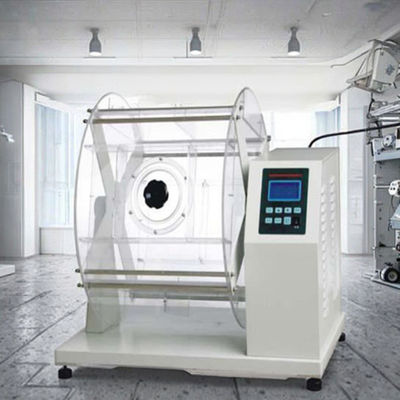

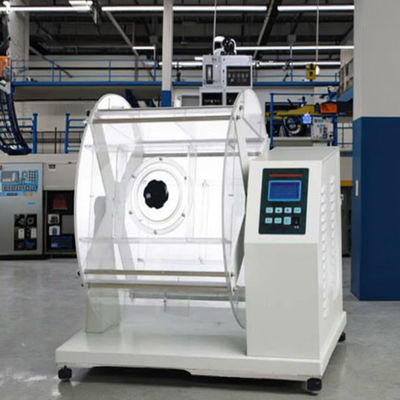

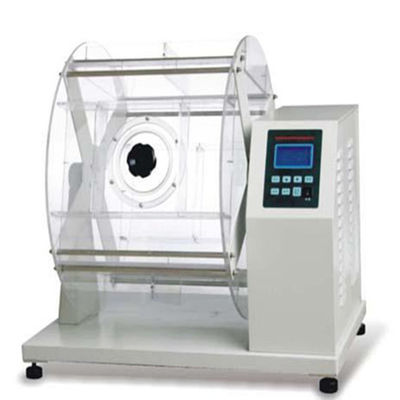

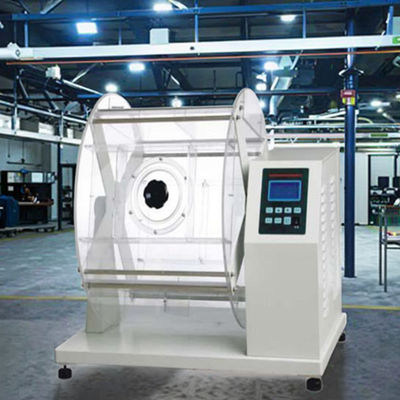

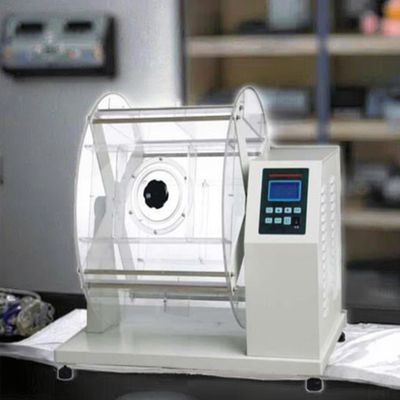

The instrument consists of a rotating box that can rotate in both directions and an electrical control part. The rotating box is a smooth cubic object made of acrylic material. The instrument has functions such as intelligent presetting of rotation speed and automatic stop when reaching the full number.

Compliant with the standards

GB/T 12705.2-2024 Textiles - Test method for anti-pilling property - Part 2: Rotating cylinder method

Scope of Application

Testing for the anti-drilling property of various fabrics used for making down products and fabrics. This test is used to measure the performance of various fabrics in preventing down or feathers from penetrating through the seams.

Structural Principles

The fabric anti-drilling performance refers to the property of the fabric that prevents down or feathers from penetrating through the gaps between the yarns. It is expressed by the number of drilling roots under specified conditions. The sample is made into a bag, filled with a certain amount of down, and placed in the rotating box of the testing instrument. At the same time, hard rubber balls are also placed in the rotating box. The gearbox rotates at a certain speed, dropping the rubber balls to a certain height and impacting the sample. This is done to simulate the various compressions, manipulations, and collisions that occur during the wearing of down products.The anti-drilling performance of the fabric is evaluated by counting the number of down roots that drill out from the sample.

Instrument features

1. The microcomputer processor controls the operation. The equipment will automatically shut down and give an alarm when the operation is terminated.

2. Counter: The LED liquid crystal display can be set, and it is equipped with a calibration system to ensure stable operation of the equipment;

3. Transparent polyacrylonitrile safety mask, facilitating the operators' observation.

4. The entire machine is made of 316 type stainless steel, which is sturdy and elegant.

Technical Specification
