JIS L1094 Voltage Attenuation Testing Machine Electrostatic Attenuation Tester Electrostatic Analyzer

JIS L1094 Voltage Attenuation Testing Machine Electrostatic Attenuation Tester Electrostatic Analyzer

Introduction

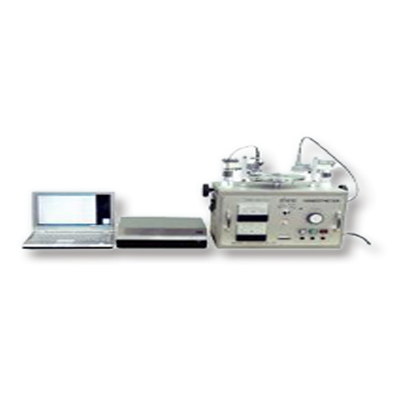

The tester in this machine is an electrostatic attenuation testing instrument used to measure the electrostatic diffusion properties of various materials. The sample becomes charged due to the exposure to air ions generated by corona discharge. After the air ion exposure stops, the attenuation curve of the charge is measured by the tester, and then the automatic analyzer calculates the half-life of voltage attenuation.

The electrostatic analyzer V2 is an analytical device. It acquires the electrostatic attenuation curve through the electrostatic tester, automatically calculates the half-life of voltage attenuation, and adopts a single-key operation method to automatically measure the electrostatic attenuation property of the material. After connecting to a personal computer, the following functions can be realized:

lSetting of attenuation rate (the half-life is usually set at 50%): 2 - 100%

lComputer data storage of test data

lTemperature and humidity data are automatically saved to a folder.

lBoth the voltage coordinate and the time coordinate can be freely enlarged or reduced.

It is applicable for measuring all thin sheet-like samples such as film, thin plates, threads, fabrics, carpets, glass, etc.

Compliant with the standards

JIS L 1094-1980 Japanese Industrial Standard: Test Method for Static Properties of Woven Fabrics and Knitted Fabrics

GB/T 12703

Technical Specification
