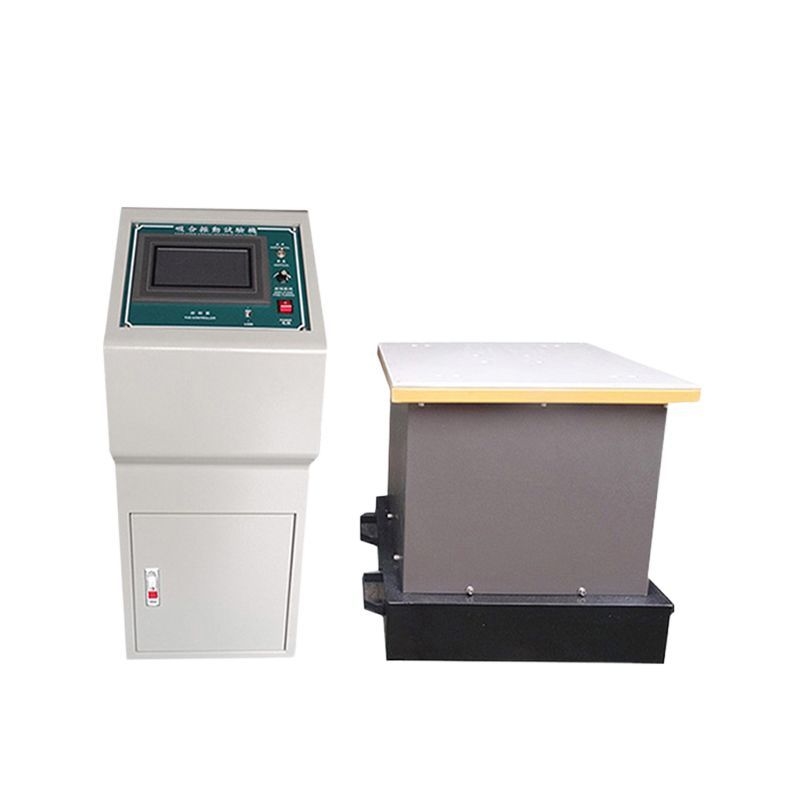

Electromagnetic Four-Dimensional Space Vibration Platform

Parameter

Specification

Max. Test Load

0–60 kg

Vibration Direction

Vertical + Horizontal + Front-Back (6-axis simultaneous, independent frequency)

Table Size (Selectable)

500×500 mm / 750×750 mm / 1000×1000 mm / 1500×1500 mm

Amplitude

0–5 mm (frequency-dependent)

Frequency Sweep

1–600 Hz (bidirectional; 1–3000 Hz customizable)

Max. Acceleration

10G

Functions

FM / Programmable / Time Control

Precision

Display: 0.01Hz / Accuracy: ±0.1Hz

Program Control

1–600 Hz, 8 segments (freq/time/cycles programmable)

Octave Function

0.01Hz step:Low→High High→Low Low→High→Low (cyclable)

Logarithmic Function

0.01Hz step:Down→Up Up→Down Down→Up→Down (cyclable)

Waveform

Sine wave (Half-wave/Full-wave)

Time Control

Arbitrary seconds

Power Supply

220V 50Hz

Power

2.0 kW

Net Weight

≈220 kg (estimated)
