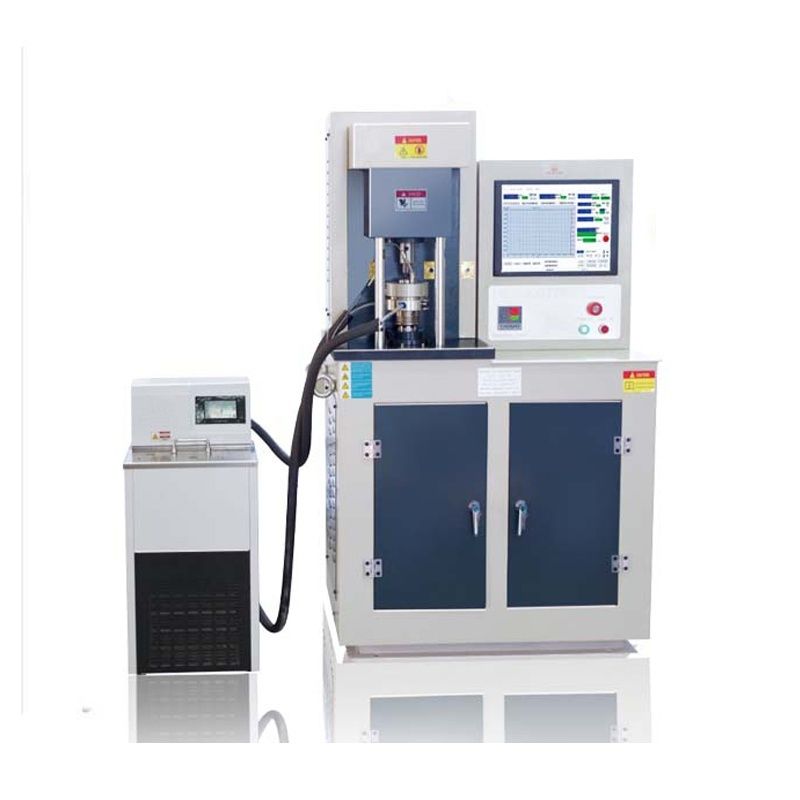

Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine

Large Image : Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-KRL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine

Description

Power Source:	Servo Motor	Warranty:	1 Year

Conical Stick Axletree Laboratory Testing Meter Cone Rod Bearing Testing Machine

Product Introduction

Using a conical roller bearing testing machine, under conditions similar to those of a gearbox, the lubricating oil is subjected to mechanical shear stress, resulting in a permanent loss of viscosity. The viscosity shear stability of the lubricating oil is expressed by the rate of decrease in the kinematic viscosity before and after the test.

Product Parameter

Test load [N]	10 - 9800
Load measurement accuracy	0.1%FS, the absolute accuracy throughout the entire range is less than 5N
Load holding accuracy	5000N±5N
Loading method	Fully automatic loading, contact measurement
Main shaft radial runout [mm]	≤0.01
Power source	Servo motor
Motor power [KW]	2.0
Main shaft speed [r/min]	5 - 3000
Axis operation control method	Manual and automatic control
Constant temperature circulation system [℃]	-10℃ - 120℃
Temperature control accuracy [℃]	±0.02
