Keyboard Key Life Test Machine Keystroke Lifetime Tester

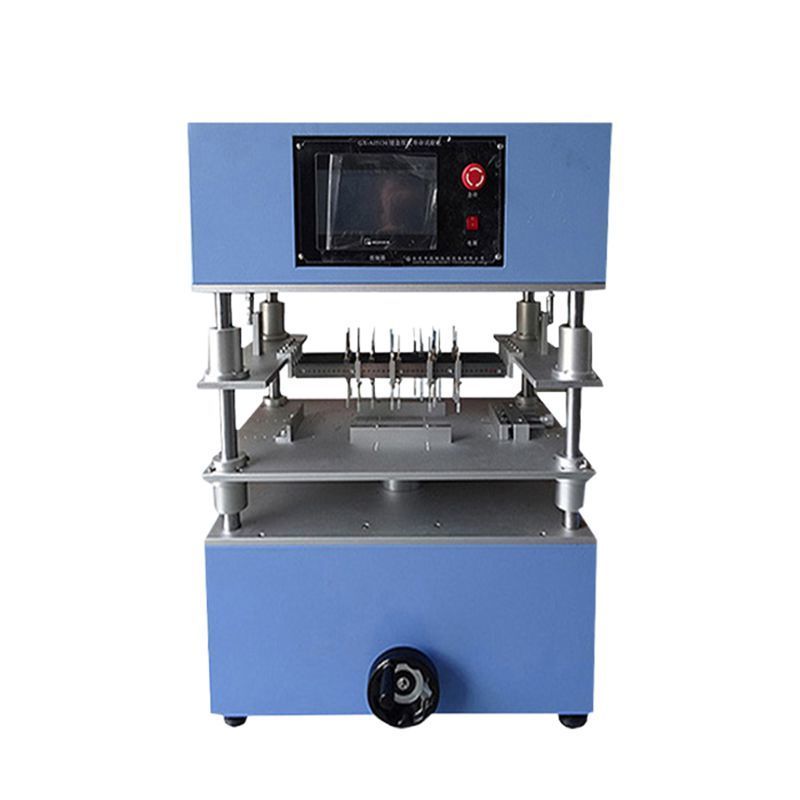

Large Image : Keyboard Key Life Test Machine Keystroke Lifetime Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q016

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Keyboard Key Life Test Machine Keystroke Lifetime Tester

Description

Testing Force:	Can Be Adjusted, Also Perform Multiple Tests Simultaneously.	Testing Speed:	Adjustable From 5 To 60 Times Per Minute.
Button Travel:	Adjustable From 0.5 To 10mm And Fully Fixed Within This Range.	Control Method:	PLC Touch Screen Programming Control.
Number Of Tests:	0 To 999999 Six-digit Counter.	Weight Of Additional Weights:	50g, 100g, 200g, 500g Weights Can Be Stacked.
Operation Mode Controller:	Motor Rotation, Single Group Motor Control.	Power Supply:	220VAC 50HZ

LR-Q016 Touchscreen Keyboard Key Life Test Machine Keystroke Lifetime Tester

1. Product Description

This device is mainly used to test the service life of keys such as keyboards, remote controllers, communication-type silicone keys and metal spring keys. It is applicable to the service life of micro switches, rubber switches and other keys. It has functions such as automatic memory of test times, memory of test times when power is off, cumulative counting of service life, automatic shutdown when the set number of times is reached, and adjustable settings for test speed, stroke and load. Moreover, it has functions such as control and adjustment of key force. This equipment complies with national standards such as UL, CCC and IEC.

2. Specification

Testing Force	Can be adjusted, also perform multiple tests simultaneously.
Testing speed	Adjustable from 5 to 60 times per minute.
Button travel	Adjustable from 0.5 to 10mm and fully fixed within this range.
Control method	PLC touch screen programming control.
Number of tests	0 to 999999 six-digit counter.
Weight of additional weights	50g, 100g, 200g, 500g weights can be stacked.
Operation mode	Motor rotation, single group motor control.
Controller	PLC touch screen display
Testing fixture	Customized according to the samples provided by the company
Power supply	220VAC 50HZ
