Life Testing Machine Alternate Switches Life Cycle Validator

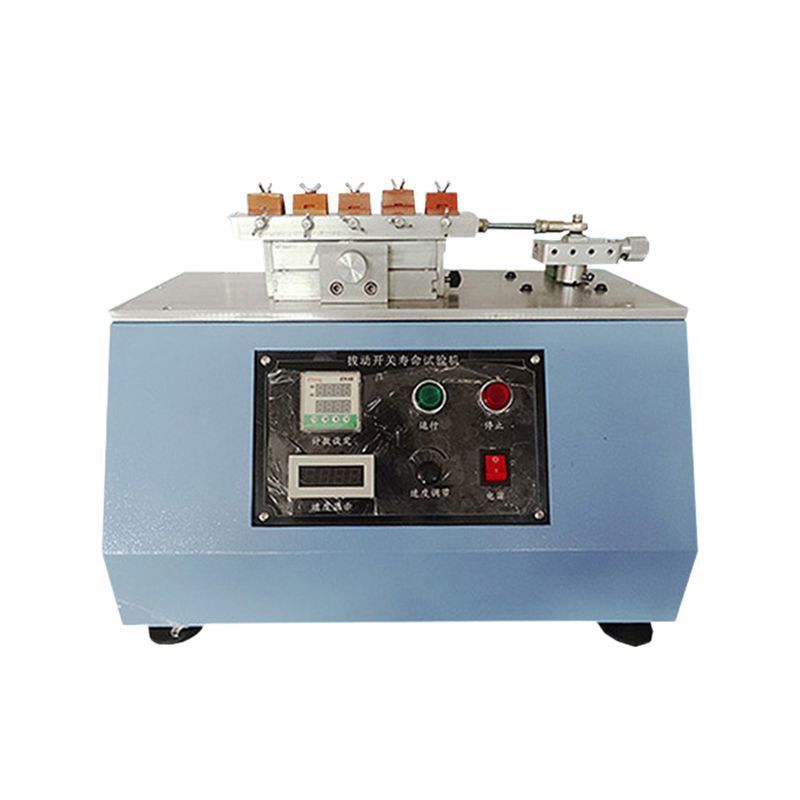

Large Image : Life Testing Machine Alternate Switches Life Cycle Validator

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q015

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Life Testing Machine Alternate Switches Life Cycle Validator

Description

Test Station:	5 Groups	Speed Range:	Adjustable From 5 To 60 Times Per Minute
Test Travel:	Adjustable From 0 To 50mm	Counting Function:	8-digit Counter (0 - 99999999), With Stop Function Setting
Transmission Method:	Electric Type	Control Method:	LED Digital Display
Movement Type:	Horizontal Movement	Weight:	Approximately 35kg

LR-Q015 Toggle Switch Life Testing Machine Alternate Switches Life Cycle Validator

1. Product Description

This machine is specially designed for the lifespan test of toggle switches. It conducts back-and-forth fatigue lifespan tests under specified stroke, speed and counting conditions to evaluate the quality issues of the products.This machine is equipped with an infinitely variable speed motor, a cam-type eccentric device, imported linear sliders, bearings and A3 steel plates, and is designed with a comprehensive use of aluminum materials.

2. Specification

Test station	5 groups
Speed range	Adjustable from 5 to 60 times per minute
Test travel	Adjustable from 0 to 50mm
Counting function	8-digit counter (0 - 99999999), with stop function setting
Transmission method	Electric type
Control method	LED digital display
Movement type	Horizontal movement
Dimensions	Approximately 500300250mm
Weight	Approximately 35kg
Power supply	220V/50Hz

3. Feature

This machine is equipped with an infinitely variable speed motor, a cam-type eccentric device, imported linear sliders, bearings and A3 steel plates, and is designed with a comprehensive use of aluminum materials.
