Key Life Tester for Keyboards Key Pads Functionality Wear Analyzer

Large Image : Key Life Tester for Keyboards Key Pads Functionality Wear Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q012

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Key Life Tester for Keyboards Key Pads Functionality Wear Analyzer

Description

Testing Force:	Adjustable, Also Capable Of Testing Work Simultaneously	Testing Speed:	Adjustable From 5 To 60 Times Per Minute
Key Travel:	Adjustable From 0.5 To 10mm And Fully Fixed Within This Range	Additional Weight Of Weights:	50g, 100g, 200g, 500g Weights Can Be Stacked
Operating Mode:	Motor Rotation, Single Group Motor Control	Controller:	LED Display
Test Fixture:	Customized According To The Samples Provided By The Company

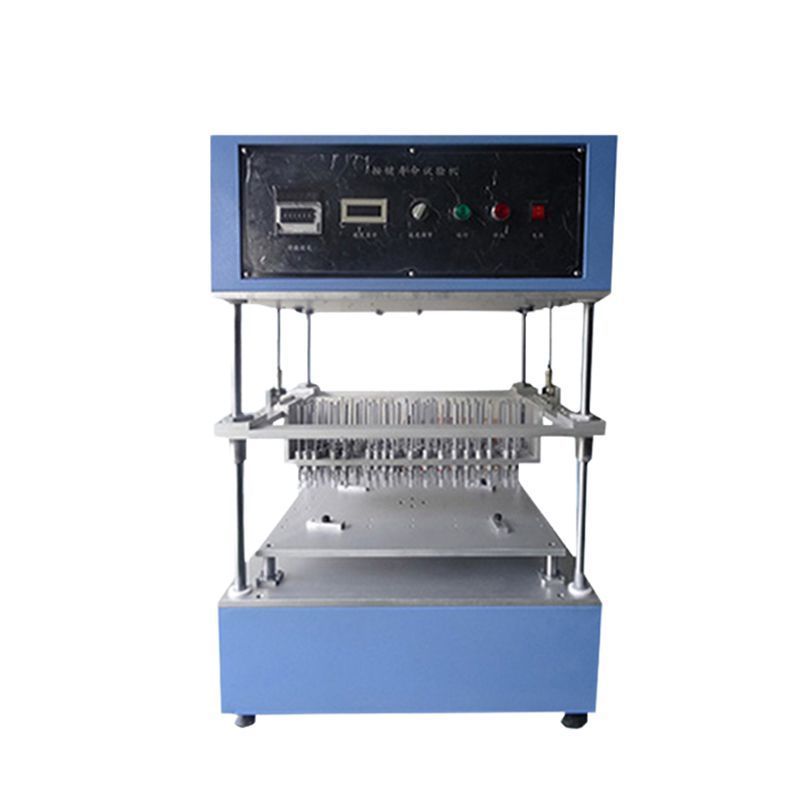

LR-Q012 Mechanical Key Life Tester for Keyboards Key Pads Functionality Wear Analyzer

1. Product Description

This device is mainly used to test the service life of keys such as keyboards, remote controllers, communication-type silicone keys, and metal spring keys. It is applicable to the service life of micro switches, rubber switches, etc. It has automatic memory of the number of operations, memory of the number of tests when power is off, cumulative counting of service life, and automatic shutdown when the set number of operations is reached. The test speed, stroke, and load can all be set and adjusted. Moreover, it has functions such as control and adjustment of key force. This equipment complies with national standards such as UL, CCC, and IEC.

2. Technical Parameters

Testing Force	Adjustable, also capable of testing work simultaneously
Testing speed	Adjustable from 5 to 60 times per minute
Key travel	Adjustable from 0.5 to 10mm and fully fixed within this range
Testing times	Six-digit counter (LED display, times can be set, can accumulate records and have power-off memory protection function)
Additional weight of weights	50g, 100g, 200g, 500g weights can be stacked
Operating mode	Motor rotation, single group motor control
Controller	LED Display
Test fixture	Customized according to the samples provided by the company
Power supply	220VAC 50HZ
