Insertion and Extraction Life Testing Machine With Multi-Station

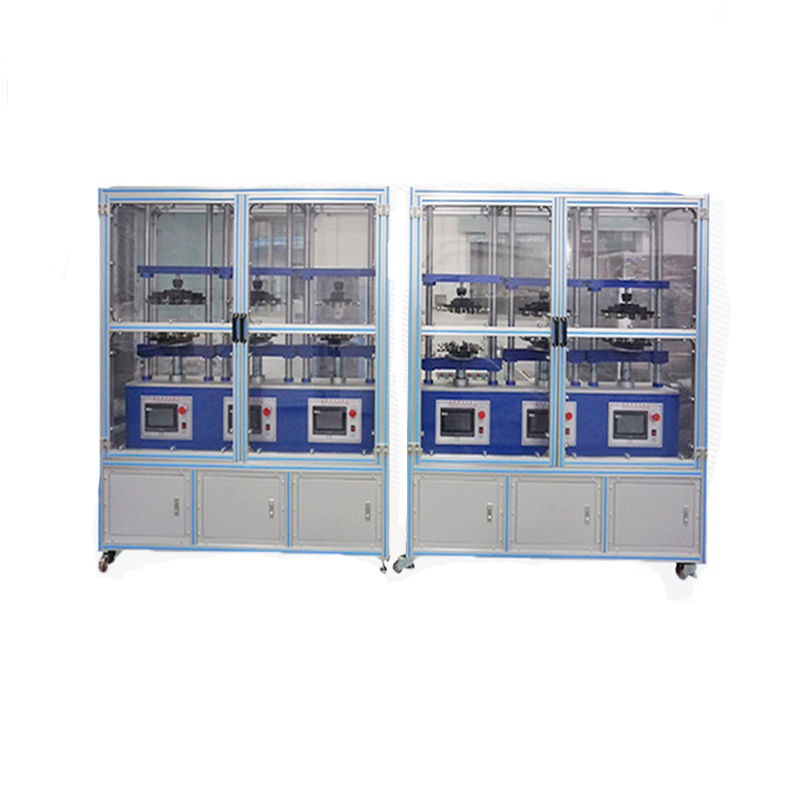

Large Image : Insertion and Extraction Life Testing Machine With Multi-Station

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q007

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Insertion and Extraction Life Testing Machine With Multi-Station

Description

Test Workstations:	6 Groups (independent Operation, Independent Control)	Stroke:	10-50mm (adjustable At Will)
Maximum Displacement Stroke Of The Center Of The Ball Along The X-axis:	Adjustable From 0 To 25mm	Maximum Displacement Stroke Of The Y-axis Of The Ball Center:	Adjustable From 0 To 25mm
Moving Platforms Along The X-Y Axes:	Six	Control Mode:	PLC Programming
Display:	7-inch Color Touch Screen

LR-Q007 Multi-Station Insertion and Extraction Life Testing Machine

1. Product Description

This machine is a professional testing machine specifically designed for checking the insertion and extraction life of products. It adopts PLC programming measurement and control technology. The touch screen can test the speed and the number of tests, and has the functions of setting the number of tests, adjusting the speed and test stroke, with high reliability.

This equipment has been highly praised by a wide range of customers, reducing their human resources and improving the quality of products.The feature of this equipment is the design of the spherical center device, which makes the test speed have no correlation with the test stroke. Whether it is a product with long or short travel detection, it can also be tested quickly, improving the testing efficiency.

2. Specification

Test workstations	6 groups (independent operation, independent control)
Stroke	10-50mm (adjustable at will)
Maximum displacement stroke of the center of the ball along the X-axis	adjustable from 0 to 25mm
Maximum displacement stroke of the Y-axis of the ball center	adjustable from 0 to 25mm
Moving platforms along the X-Y axes	Six
Control mode	PLC programming
Display	7-inch color touch screen
Plugging and unplugging speed	0-30 times /min (adjustable, depending on the length of different displacements)
Counting	0-999,999 times programmable
Fixtures	6 sets ×3 groups, upper and lower fixtures
Safety alarm	It is equipped with a full-cover type and has a peak alarm function when the number of times is reached
Twelve Volume	Approximately 600×1040×900mm
Weight	Approximately 180 kilograms
Fourteen Power Supply	220V 50Hz
