Folding Endurance Testing Apparatus for Flexing OLED Screen

Large Image : Folding Endurance Testing Apparatus for Flexing OLED Screen

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Folding Endurance Testing Apparatus for Flexing OLED Screen

Description

Test Station:	Single Station	Maximum Product Size For Testing:	200×140×0.5mm
Compression Stroke:	Adjustable From 0 To 100mm Up And Down (accuracy 0.1mm)	Bending Radius:	R≤0.3mm (0.3-40mm Can Be Set Arbitrarily)
Test Frequency Range:	1-99999999 Can Be Set Arbitrarily	Pressure Plate Size:	100×160mm, Thickness 10mm (aluminum Alloy Material)
Display:	It Can Display The Number Of Bends And The Bending Radius

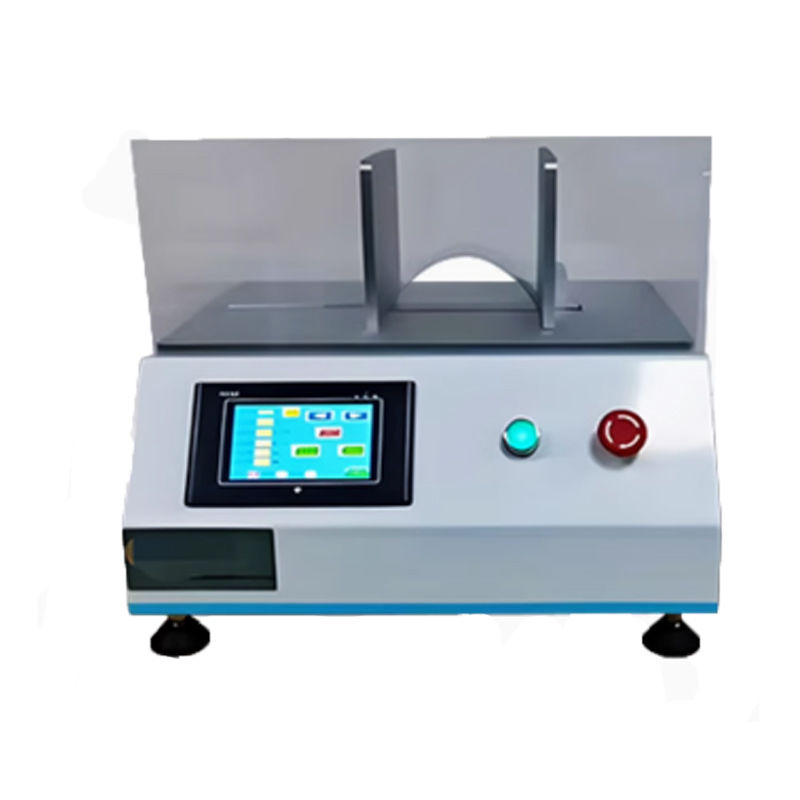

Lr-Q003 Flexible Screen Folding Endurance Testing Apparatus for Flexing OLED Screen

1. Product Description

The flexible screen bending life testing machine is mainly used for bending life tests on flexible boards that can be bent (commonly known as flexible circuit boards, flexible OLED screens and flexible materials).

2. Specification

Test station	Single station
Maximum product size for testing	200×140×0.5mm
Compression stroke	Adjustable from 0 to 100mm up and down (accuracy 0.1mm)
Bending radius	R≤0.3mm (0.3-40mm can be set arbitrarily)
Test frequency range	1-99999999 can be set arbitrarily
Pressure plate size	100×160mm, thickness 10mm (aluminum alloy material)
Display	It can display the number of bends and the bending radius
Anti-clamping device	Safety cover protection + program protection (can only be activated when the sample is clamped properly)
Control motor	Servo motor
Display mode	Touchscreen display
Voltage	AC220V 50HZ
Equipment weight	Approximately 50 kilograms
Equipment external dimensions	approximately 450×285×400mm
