Product Details:
|
Power Supply: | 220V, 50Hz | Power Consumption: | 300W |
---|---|---|---|
Ambient Temperature: | 25±5°C | Relative Humidity: | ≤85% RH |
Warranty: | 1 Year | Certification: | Includes Calibration Certification |
Highlight: | Differential Photometer Machine,Photometer Machine 300W,Non Ferrous Metal Materials Analyzer |
1.Description:

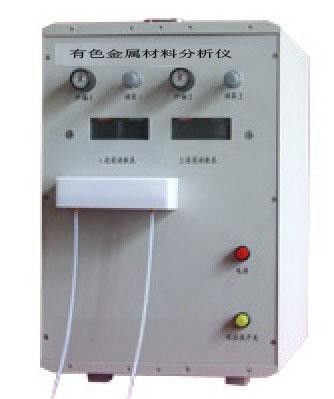

SX83 differential photometer features the ability to precisely measure high content components and sensitively measure trace components. It expands the content range of the measured elements and can accurately and quickly conduct quantitative detection for high-content tungsten, molybdenum, iron, silicon, nickel, cobalt and trace components of tungsten, molybdenum, iron, silicon, nickel, and cobalt. At the same time, it can systematically measure multiple elements with different content levels. It is a new high-tech product of our company.
This instrument is a portable and compact quantitative measuring device, suitable for the industries of non-ferrous metal minerals, non-ferrous metal processing and geology. It is particularly widely used in the fields of tungsten, molybdenum and other minerals and processing, and has received high praise from users.
2.Technical Parameter
Parameter | Specification | |
1. Measurable Elements & Ranges | ||
Element | Range | Error Tolerance |
W | 0.01~99.9% | All errors ≤ permissible limits in national standard analytical methods |
WO3 | 0.001~400g/L | |
Mo | 0.005~99.9% | |
MoO3 | 0.001~400g/L | |
Ni/Co | 0.01~60% | |
Fe/Ti/SiO2 | 0.01~99.9% | |
V2O5 | ≤99.5% | |
Cu | 0.01~100% | |
2. Sample Types | Non-ferrous minerals, alloys & chemicals: | |
Chromium salts, V2O5, MnO, NiO, TiO2, phosphates, Co/Fe/Mo oxides, | ||
Molybdates, Mo ores, Fe-Mo alloys, WO3, WC, W ores, tungstates, | ||
W-Co alloys, Mo-Ni alloys, Ni-Co-Cu alloys, bismuth salts | ||
3. Technical Parameters | ||
Measurement Channels | 2 | |
Measurement Stability | ±2 digits within 5 minutes | |
Test Repeatability | 100% compliance (±2 digits) in 20 consecutive tests | |
4. Analysis Speed | ||
Routine Analysis | 2-4 samples/hour (from weighing) | |
Other Elements | 2-4 hours | |
5. Operating Conditions | ||
Power Supply | 220V/50Hz | |
Power Consumption | 300W | |
Ambient Temperature | 25±5°C | |
Relative Humidity | ≤85% RH |
