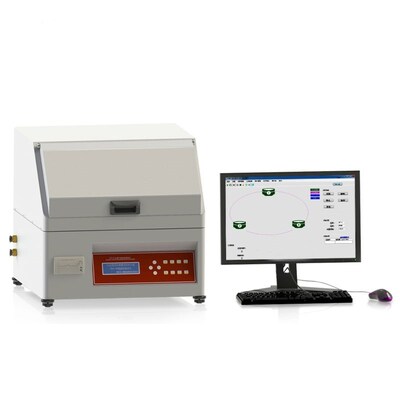

ISO 2528 Water Vapor Permeability Tester AC220V 50Hz with 0.1 ~ 10,000 g/m2·24h Range for Film Testing

Large Image : ISO 2528 Water Vapor Permeability Tester AC220V 50Hz with 0.1 ~ 10,000 g/m2·24h Range for Film Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-F058

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ISO 2528 Water Vapor Permeability Tester AC220V 50Hz with 0.1 ~ 10,000 g/m2·24h Range for Film Testing

Description

Net Weight:

76 Kg

Dimension:

695 Mm (L) × 555 Mm (W) × 390 Mm (H)

Test Range:

0.1 ~ 10,000 G/m2·24h

Power Supply:

AC220V 50Hz

Highlight:

AC220V water vapor permeability tester

ISO 2528 film testing equipment

water vapor transmission rate tester

AC220V 50Hz Water Vapor Permeability Tester

Product Overview

ISO 2528 Water Vapor Permeability Tester Cup Method for testing water vapor transmission rate of film samples. This instrument controls and regulates material technical indicators by measuring water vapor transmission rate to meet various application requirements.

Key Features

Gas cylinder lifting structure design with periodic weighing method reduces systematic errors
Simultaneous testing of six different or equivalent samples with independent results
Standard wind speed prevents water vapor gradient formation
Wide-range, high-precision automatic temperature and humidity control
Convenient access to calibration port temperature and humidity
Computer-controlled system with automated testing process
Multiple format report output (Excel, database, etc.)
Quick calibration with reference membranes or standard weights
USB and common data ports for easy data transfer

Compliance Standards

ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, YBB 00092003

Applications

Category	Materials
Films	Plastic films, plastic composite films, paper-plastic composite films, geomembranes, coextruded films, aluminized films, aluminum foils, aluminum foil composite films
Sheeting	Engineering plastics, rubber, building materials (PP, PVC, PVDC)
Paper and Paper Board	Paper, paper board, aluminum foil paper for cigarette packages, Tetra Pak materials
Textiles and Nonwovens	Waterproof breathable fabric, non-woven fabric for diapers, hygienic products
Extended Applications	Inverted cup method, artificial skin, medical products, solar back-sheets, LCD monitor films, paint films, cosmetics, biodegradable films

Technical Specifications

Specification	Value
Model	LR-F058
Test Range	0.1 ~ 10,000 g/m²*24h (standard)
Number of Specimens	1~6 with independent test results
Accuracy	0.01 g/m²*24h
Resolution	0.001g
Temperature Range	15°C ~ 55°C (standard)
Temperature Accuracy	±0.1°C (standard)
Humidity Range	10%RH ~ 98%RH (standard is 90%RH)
Humidity Accuracy	±1%RH
Air Velocity	0.5 ~ 2.5 m/s (customization available)
Test Area	33 cm²
Specimen Thickness	≤ 3 mm (customization available)
Specimen Size	Φ74 mm
Test Chamber Size	15 L
Gas Supply	Air
Gas Supply Pressure	0.6 MPa
Port Size	Φ6 mm PU tubing
Instrument Dimension	695 mm (L) × 555 mm (W) × 390 mm (H)
Power Supply	AC220V 50Hz
Net Weight	76 kg
