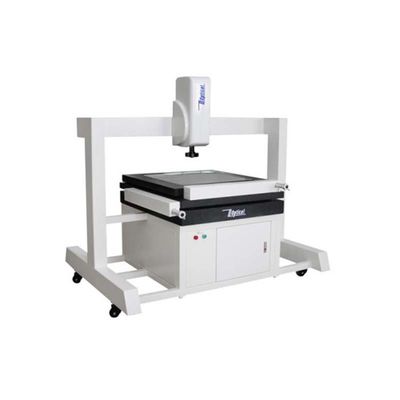

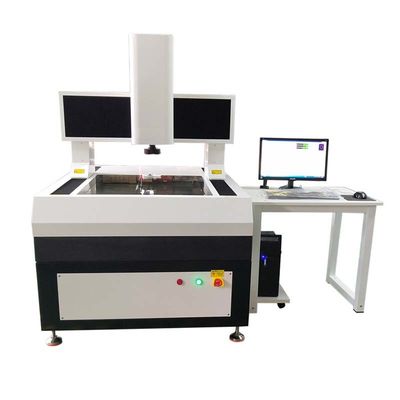

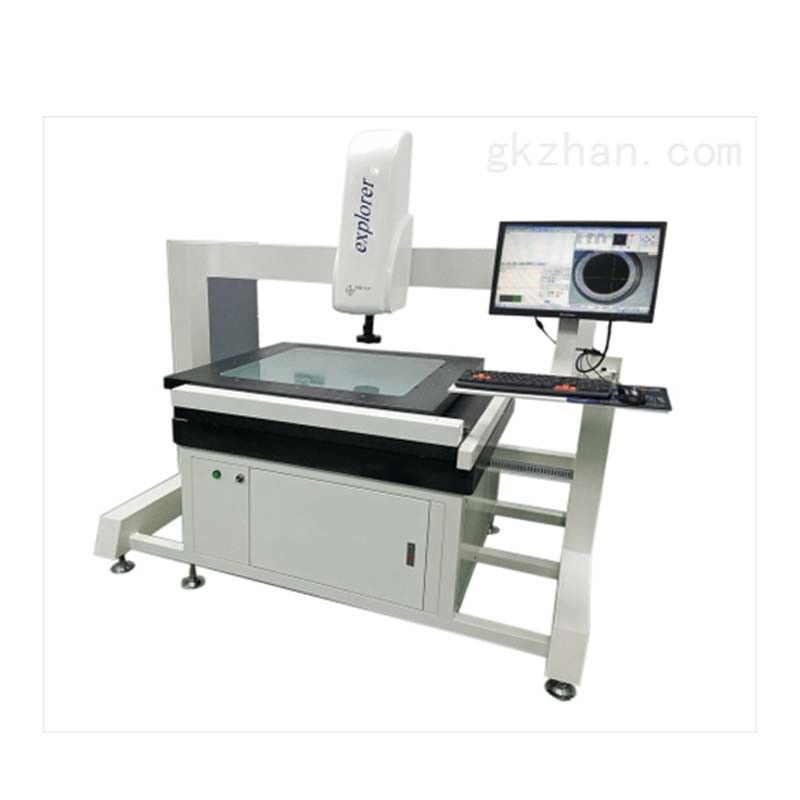

Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument

Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument
Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument

Large Image :  Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument

Product Details:
Place of Origin: China
Brand Name: Lonroy
Model Number: LR-VMS-003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Package
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 200
Contact Now

Semi Automaic Video Measuring Machine High Precision Optical Measuring Instrument

Description
External Dimension: 1700*1200*1750mm Weight: 1400kg
X/Y Axis Travel Mm: 500*500 Mental Table Size: 900*900mm
Glass Table Size: 550*550mm
Highlight:

Semi Automaic Video Measuring Machine

,

High Precision Optical Measuring Instrument

,

Semi Automaic Optical Measuring Instrument

Semi Automaic Video Measuring Machine Optical Measuring Instrument
1. Use
A high configuration,low price measuring equipment between the automatic measuring machine and VMS manual measuring machine, high configuration, low price measuring equipment, based on two-dimensional coordinates measurement, including points, lines, circles, arcs, rectangles and other geometric elements and parts of the length, angle, contour shape, surface shape, etc., but also can do three-dimensional auxiliary measurement, such as step height, hole depth, surface flatness, etc., are widely used in machinery, electronics, instrumentation, plastics, hardware and other industries.

2. Features
1. High precision overall measurement, Z axis CNC control.
2. High precision and high-strength machine: 00 marble base / column / workbench, with high precision and good stability.
3. XYZ three-axis imported precision V-shaped guide rail / imported ground ball screw transmission system, with long service life and good stability.
4. High precision grating ruler 0.5μm.
5. WM continuous zoom optical lens, different frames, different magnifications, no need for zoom correction.
6. HD japanese SONY CCD camera, high quality measuring screen.
7. Auxiliary focusing measurement, optical measurement of height and flatness, and can be equipped with a British RENISHAW contact probe.
8. Programmable three ring eight sided light, LED contour light, coaxial light. Different products have different colors of light.
9. The laser pointer indicates the measurement position, with fast positioning and convenient measurement.


3. Specification

Machine Model

NC-5050

NC-6060

NC-8010

NC-1010

Work table

X/Y axis travel mm

500*500

600*600

800*100

1000*1000

Z axis travel mm

Effective space is 245mm, focusing stroke is 200mm, work distance is 95mm

Mental table size mm

900*900

1000*1000

1200*1450

1450*1450

Glass table size mm

550*550

650*650

850*1050

1050*1050

Drive type

X/Y/Z axis precision linear guide, X/Y axis precision optical axis drive, Z Axis grinding ball screw drive.

Measure drive system

Optical scale resolution: X/Y/Z axis 0.0005mm(0.5μm)

Measure accuracy: ≤3μm+L/200 reapeatability accuracy: ≤3μm+L/200

Z axis high performance servo motor, double closed loop control system.

Image System

Camera: Japanese SONY CCD video magnification 30-230X

Len:high definition zoom lens / Continuous magnification 0.7-4.5X

Can match 0.5X objective lens, total magnification: 15-115X

Can match 2X objective lens, total magnification: 60-460X

Light system

Surface light and projection light, cold light, long life, brightness adjustable.

Machine external dimension

1700*1200*1750

1800*1300*1750

2200*1600*1750

2600*2000*1750

Weight kg

1400

2000

2400

3000

4. Software introduce
      WM - ME 3 d measurement software main functions are as follows:
(1) Measuring element
  Measure 12 elements such as points, lines, circles, arcs, ellipses, rectangles, slots, O-rings, distances, angles, and open and closed cloud lines).
Functional features:
Various measurement methods (automatic judgment, point measurement, comparison, tolerance contrast measurement. Preset elements) to meet the needs of different customers, greatly improving the convenience of use and accuracy of measurement.
Various single-point sampling methods: mouse point, cross-line edge point, zoom point.
Closed measurement of the circumference, area and center of gravity of the cloud line, using a three-stage interpolation algorithm, the most accurate method of cloud line measurement.
Can take over the box to select the measurement of a number of circles, a rapid and accurate measurement of a number of circles.
Measurement data can be saved as DXF files or BMP images, as well as in user program format.
(2)  Macro measurement function
   Macro measurement function is that will be some measure, command associated witha button. Click on the buttonthat starts the macro measurement function, macro measurement function automatically completes the tectonic movement, decrease the times of user mouse operation and improve the work efficiency.
Note: macro measurement is different from the user program function, macro measuredoes not record source, coordinate position measurement condition, etc. Run themacro function, also do not move the workbench, polishing, etc. 16 software provides aset of macro measure function, the user can edit the macro measurement functionbutton icon. Macro function interface is as follows:
(3)  Automatic capture measurement
Click, and then use the mouse to circle to the edge of the workpiece, can automatically find edgeline, circle or arc. The following figure, will automatically be framed round.
(4)  element structure
Elements to construct powerful. MEGA structure provide 10 kinds of 2 d elements method ("translation ", "rotation" and "extraction", "combination", "parallel" and "vertical", "mirror", "symmetry", "intersection", "tangent") tectonic geometry elements. MEGA elements of 2 d structure makes ithard for users to easily cope with some measure of elements, so as to improve the work efficiency.
(5) Autofocus function
Provide a precise focus and shooting function and through measuring height value focus, or thecurrent is obtained by af point coordinates.
(6) Auxiliary dimmer
    That move light indicator, instructs the user when is the best time to light intensity, avoid themeasurement error brought by the due to the lighting, improve the measuring accuracy andmeasuring efficiency.
(7) Graphics functions
    Have perfect image processing and display function (local amplification, scaling, translation, window display, full screen), makes the measurement more image, intuitive, easy to user operation. Rolling middle mouse button, zoom in on graphics, hold key notto put in the moving the mouse, the mobile graphics.
(8) Tagging function
    Can directly in the plot and the elements of the image graphics on the Angle,distance, distance of X direction and Y direction distance and radius of circle (arc),round (arc) diameter, arc length. The user be clear at a glance.
Image window and drawing window can synchronize display measurementelements and annotations. Images can be hidden window drawing graphics, cansynchronize to delete, select image window and 2 d graphics window graphic elements. Below to indicate two round X direction and Y direction distance, and the radius of thecircle.
(9) Tolerance
   Improve the dimensional tolerance of computing power. Can set the defaulttolerance zone.
  Conform to the national standard of the form tolerance capacity, can calculate theshape tolerance, really straight degree, circle, arc roundness.
 Position tolerance calculation contains position degree, parallel degree, verticaldegree, slope and concentricity, degree of symmetry. Out-of-tolerancealarmautomatically, and with red warning.
Round size tolerance input dialog is illustrated below.
(10) DXF file import programming
     After importing the DXF file, the software will prompt the user operation step by step, when establishthe workpiece coordinate system, the DXF file user program to complete the import. The softwarewill automatically generate value in the name of the element name. When running a user program, will produce DXF file and image texture contrast.
(11) Reporting features
Measurement data can be exported to Excel, Word,AutoCAD, TXT.
When running the user program, but will import data in rows or columns way to Excel.
Import to the report, they can choose whether to export the graphics and bitmap.
Pictures, below is the same workpiece measurement after five times, automatic export to Excel inthe report.
(12) Online SPC functions
      MEGA 2 d provide independent, professional SPC software, for subsequentprocessing of measured data.
Software and SPC software seamless connection, measurement software aftercompletion of measurement data imported into the SPC database automatically, without human input again, all the control limits set was done in measuring software, noneed to set the SPC software, thus greatly improve theefficiency. SPC providesprocess and analysis with the control charts. Provide control charts are: average rangecontrol chart, the average standard deviation control charts, the median range controlchart, individual values and moving average control chart, histogram, CPK graph,specification standard deviation control charts, the process standard deviation controlcharts, standard deviation comparison chart, process suggested analysis diagram, etc. To generate graphics can use eight decision rules for decision. Their charts and datacan be printed and imported into Excel.
 (13) Help system
     WM - ME 2 d provides a complete help system. Help users are not familiar withsoftware, quickly master the use of the software.
