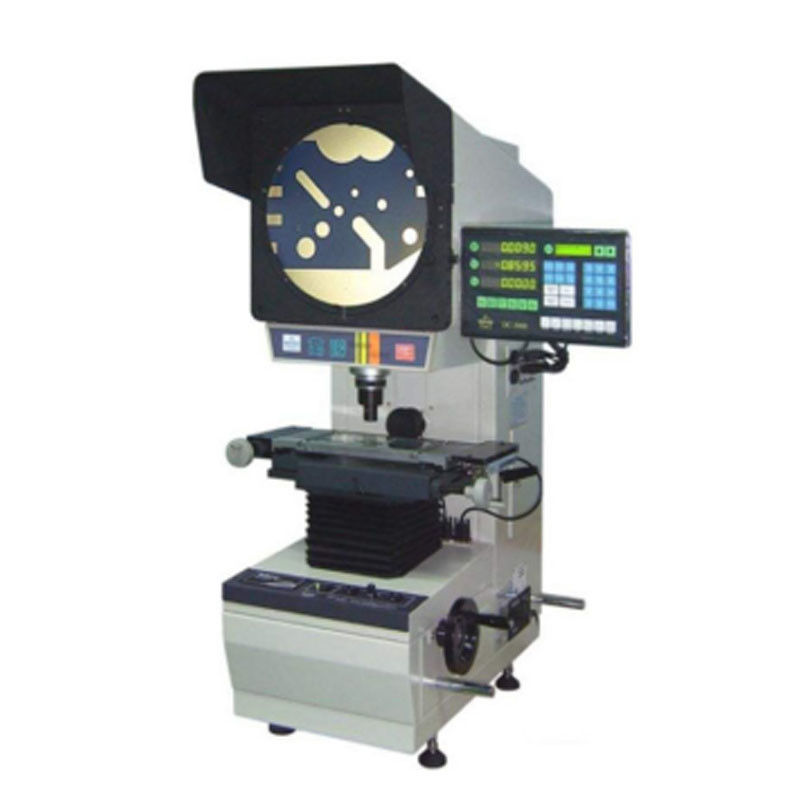

Compact Digital Profile Projector Machine 400W Digital Measuring Projector

Model

CPJ-3015A

CPJ-3020A

CPJ-3025A

CPJ-3030A

CPJ-3040A

Table

The metal table’s size

354 x228 mm

404 x228 mm

450 x280 mm

500 x330 mm

606 x466 mm

The glass table’s size

210 x160 mm

260 x160 mm

306 x196 mm

321 x221 mm

450 x350mm

X-axis travel

150mm

200mm

250mm

295mm

400mm

Y-axis travel

100mm

100mm

150mm

195mm

300mm

Z-axis travel

100mm (for focus)

X, Z-axis digital display resolution ,  ≤ (3 + L/200) μm

0.0005mm

coordinate indication error

(2.5 + L/100) μm

Size

L×W×H(mm)

780×780 × 1100

780×780 × 1100

810×780 × 1120

900×780 × 1120

1040×780 × 1120

Weight

Unit(kg)

160

160

180

250

250

Projector screen

Screen size (mm)

Ø 312 Used range>Ø 300(with the meter line)

Screen rotary rang

 0°~360°

Rotation digital resolution

1′or 0.01°

Lens

Magnification

10 X

(Option)

20X

(Option)

50X

(Option)

100X

(Option)

Working distance(mm)

77.7

44.3

38.4

25.3

Field of view in object(mm)

Φ30

15

Φ6

Φ3

Max.workpiece height(mm)

90

90

90

90

Data Processing System

DC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.

Options

Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector.

Power

110V-240V(AC), 50/60HZ, Total power=400W
