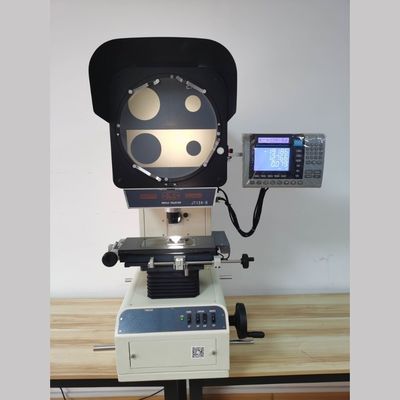

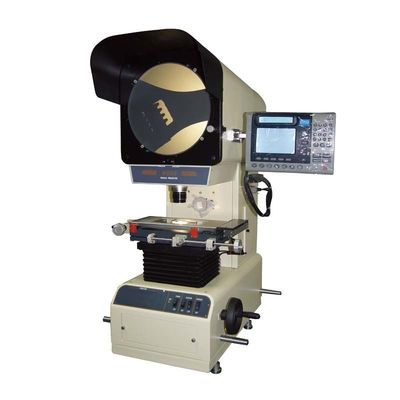

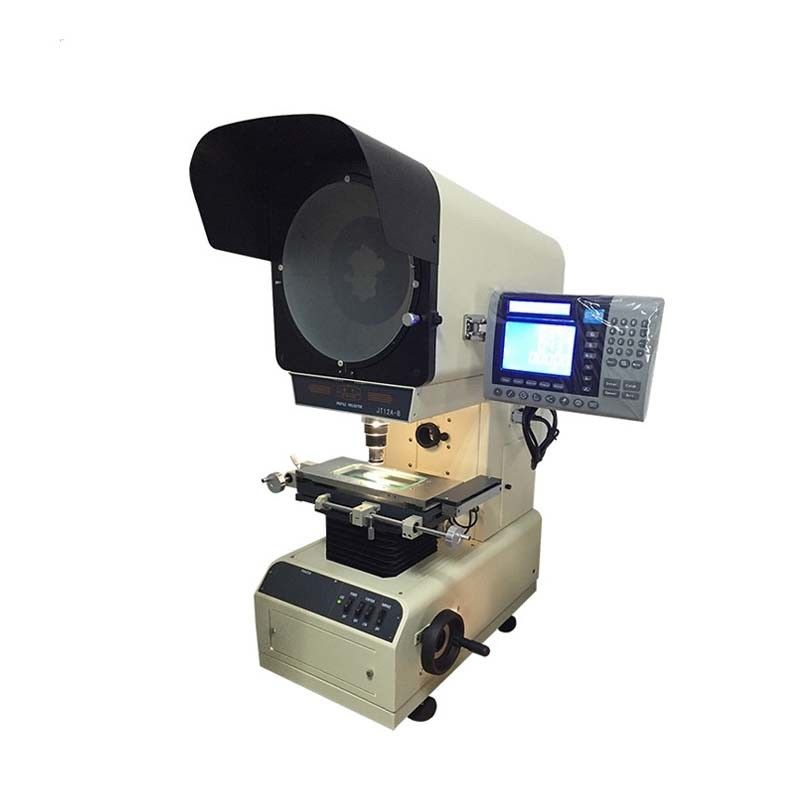

JT12A-B Digital Optical Profile Projector Machine 300mm Positive Image

JT12A-B Digital Optical Profile Projector 300mm Positive Image

1. Use
The projector is a kind of measuring instrument which utilizes the principle of optics to enlarge the image of the measured piece on the projection screen through the objective lens with accurate magnification.The projector is a precision instrument which integrates light, machine, electricity and calculation.

2. Character
The imaging is clear, the magnification rate is accurate, the comparison measurement is convenient.
Aspherical condenser illuminates, makes the projection screen field bright and even, reduces the measurement error, the precision is more guaranteed.
Imported long life halogen tungsten lamp is adopted to meet the demand of long time use.
Axial fan provides heat dissipation in both directions.
With DS600 multifunction digital display table, and can choose micro printer.

3. Specification

Projection screen size: 100mm
Projection screen rotation range: 0 ° ~ 360 °
Rotation Angle: 1 '
Rotation Angle accuracy: 6 '
The workbench


Lighting source
Transmission lighting: 12V 100W halogen tungsten lamp
Reflection lighting: 24V 150W halogen tungsten lamp

Objective lens

Magnification error: 0.08%
Instrument environment
Room temperature 20 ºC±5 ºC, relative humidity: 40%- -70% RH
External dimension (mm) : L 380 x L 694 x H1058
Instrument quality: 135kg
